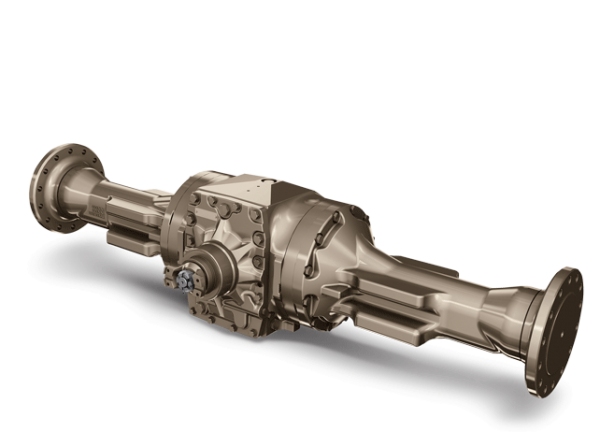

Funk axle teammateii 1200

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 1200 TeamMate II axle (PEAG25 & ROAG25) parts along with factory-trained technicians. Contact the experts today to learn more about how we can help you with your Funk 1200 TeamMate II axle needs.

Pro Tip: The quickest way to identify your Funk 1200 axle is to provide the serial number that is listed on the axle’s data tag. There are two different serial number formats that begin with PEAG25 & ROAG25 but the full format you would see on the tag is: PEAG25XXXXXXX & ROAG25XXXXXXX (“x” being a numerical digit).

Custom features

  • Inboard planetary final drive design
  • Increases tire size flexibility since the planetary does not compete for wheel space
  • Enables a wider variety of acceptable track widths than outboard designs
  • One integral oiling and cooling system
  • Reduces heat transfer to tires
  • Independent or dual-service brake actuation
  • Spiral bevel gear set design allows bidirectional operation
  • Input housings designed for use with oscillation hardware
  • Spring-applied hydraulic release or manually applied parking brakes on fixed mounted axles
  • Inboard wet brakes increase reliability and provide spark-free operation for regulatory compliance in hazardous environments
  • One oil supply for all planetary, brake, and differential components for better cooling

Long axle life

  • Final drives, spiral bevel gear set, and structural components designed for extreme applications
  • Planetaries not packaged into the wheel, allowing for larger size, making torque and forward-reverse transitions reliable
  • Sliding tooth contact spiral bevel gear set is minimized for longer life
  • Large oil sump ensures cool operation, prolonging life of the spiral bevel gear set, final drives, differential bearings, and pinion bearings
  • Inboard wet disc brakes protected from contaminants and last up to four times longer than dry disc brakes
  • Inboard wet disc brakes operate cooler and last longer due to large sump
  • No brake lines at the wheel end that require protection
  • Inboard wet brakes provide spark-free operation for regulatory compliance in hazardous environments

Product specs

  • Peak output torque: 35,000 Nm (310,000 in-lb)
  • Peak Vertical Load: 240,000 N (54,000 lb)
  • Reduction ratios: 4.333:1 - 33.429:1

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly Numbers:

YZ17282, YZ17283, YZ17284, YZ17285, YZ17286, YZ17287, YZ17288, YZ17289, YZ17290, YZ17291, YZ17292, YZ17293, YZ17294, YZ17295, YZ17296, YZ17297, YZ17298, YZ17299, YZ17300, YZ17301, YZ17302, YZ17303, YZ17304, YZ17305, YZ17306, YZ17307, YZ17308, YZ17309, YZ17310, YZ17311, YZ17312, YZ17313, YZ17314, YZ17315, YZ17316, YZ17317, YZ17318, YZ17319, YZ17320, YZ17321, YZ17322, YZ17323, YZ17324, YZ17325, YZ17326, YZ17327, YZ17328, YZ17329, YZ17330, YZ17331, YZ17332, YZ17333, YZ17334, YZ17335, YZ17336, YZ17337, YZ17338, YZ17339, YZ17340, YZ17341, YZ17342, YZ17343, YZ17344, YZ17345, YZ17346, YZ17347, YZ17348, YZ17349, YZ17350, YZ17351, YZ17352, YZ17353, YZ17354, YZ17355, YZ17356, YZ17357, YZ17358, YZ17359, YZ17360, YZ17361, YZ17362, YZ17363, YZ17364, YZ17365, YZ17366, YZ17367, YZ17368, YZ17369, YZ17370, YZ17371, YZ17372, YZ17373, YZ17374, YZ17375, YZ17376, YZ17377, YZ17378, YZ17379, YZ17380, YZ17381, YZ17382, YZ17383, YZ17384, YZ17385, YZ17386, YZ17387, YZ17388, YZ17389, YZ17390, YZ17391, YZ17392, YZ17393, YZ17394, YZ17395, YZ17396, YZ17397, YZ17398, YZ17399, YZ17400, YZ17402, YZ17723, YZ17882, YZ17943, YZ17976, YZ18505, YZ18673, YZ18674, YZ18718, YZ18829, YZ18852, YZ18829, YZ18990, YZ19184, YZ19185, YZ19305, YZ19405, YZ19508, YZ19509
