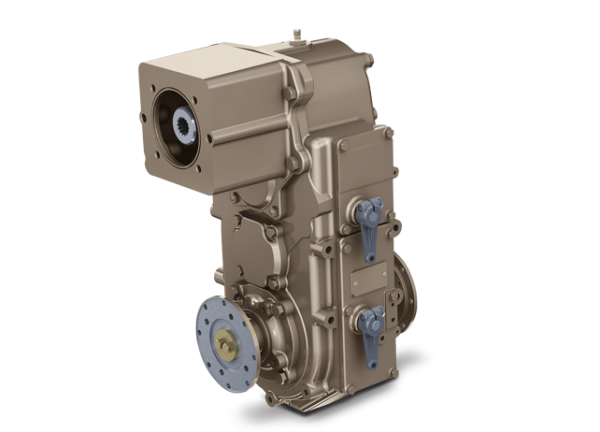

Funk transmission hmd33000

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 33000 HMD transmission parts and complete transmissions along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk HMD transmission needs.

Ratings

Input power (max): 101 kW (135 hp)

Input torque (max): 407 Nm (300 lb-ft)

Input no load speed (max): 2400 rpm

General Data

Motor adapters: SAE C and D

Approximate dry weight: 132 kg (290 lb)

Oil capacity: 2.2 L (2 qt) - 4.4 L (4 qt) with disconnect

Oil type: MIL-L-2105-C or API classification GL-5

Speeds: 4

Configuration: Drop - 381 mm (15 in)

Shift Options: Mechanical

Applications: Dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any equipment requiring controlled travel speed

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers:

33000, HMD33000, HMD33000NHC, HMD33000NV, HMD33000NVC, HMD33000NHD, HMD334NHC, HMD334NV, HMD334NVC, HMD334NHD, HMD332NHD, 334NHC, 334NV, 334NVC, 334NHD, 332NHD, 10601, 1069, 01069, YZ1069, YZ01069, 10998, 11103, 12410, 3590, 03590, YZ3590, YZ03590, 4586, 04586, YZ4586, YZ04586, 4993, 04993, YZ4993, YZ04993, 6941, 06941, YZ6941, YZ06941, 7216, 07216, YZ7216, YZ07216, 7736, 07736, YZ7736, YZ07736, 8310, 08310, YZ8310, YZ08310, 8546, 08546, YZ8546, YZ08546, YZ14826, 5947, 05947, YZ5947, YZ05947, YZ12410, YZ14689, YZ15531, YZ17272, YZ15322, YZ15780, YZ15932, YZ16315
