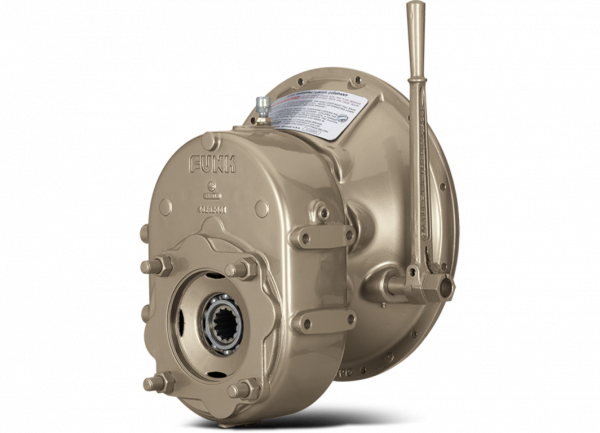

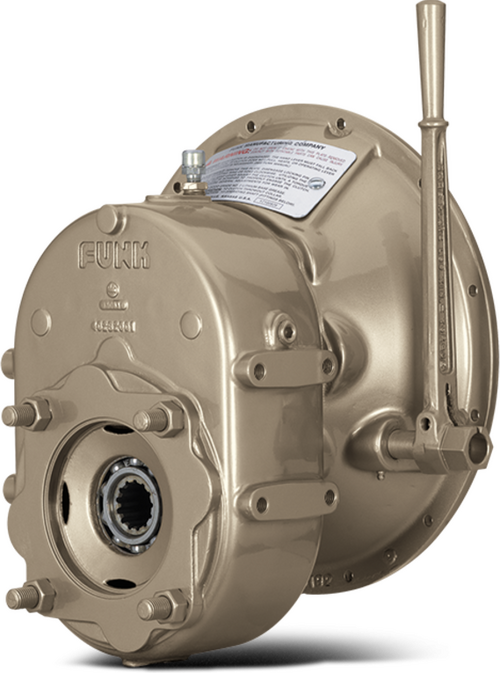

Pump drive 28101 28000 Single large 513f35dc22ead8da7b4b241bc3614b5fe0d6fa33

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 28000 Single pump drives with an array of different gear ratio, input, and output options to quickly build a new pump drive to be ready to ship in typically 2-3 days. We understand the necessity of speed to get you back and operating and are here to make it happen. In addition, we have a large inventory of parts along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk 28000 Single pump drive needs.


High Quality

We use the latest manufacturing technology to ensure we deliver the highest quality products for you.

Fast Service

Whether you need a new pump drive or service support on an existing drive, our modular assembly system and experienced regional distribution network lets us get you what you need fast.

Integration Support

Getting the most out of your equipment depends on close integration between all components. Our application experts can help integrate your entire system from the engine to the pump drives, powershift transmissions, HMD transmissions, planetary drives, and inboard planetary axles.

Additional Features

  • Ball bearings include a built-in oil reservoir in the outer race to provide uninterrupted lubrication.
  • Viton® shaft seals provide long life in high-temperature applications.
  • Engine housing adapters are available for a variety of flywheel sizes.
  • Cast iron housings are built to withstand hard use in tough applications.
  • Dedicated pathways provide lubrication to bearings and splines.
  • Internal spline adapters make it quick and easy to configure pump drives to a variety of applications.
  • High quality spur gears provide quiet operation and allow the use of ball bearings.
  • Wet splines provide a long, trouble-free life.
  • Pump adapter plates can be easily changed for use with different pump sizes.

Product Specs

  • Type Single
  • Approximate dry weight 50-80 kg (110-175 lbs)
  • Max input power* 242 kw (325 hp)
  • Max input torque* 780 Nm (575 lb-ft)
  • Max output torque 780 Nm (575 lb-ft)
  • Max input/output speed 3000 rpm

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers

28275, C28275, 28275LB, 28275CB, 28275MB, 28275HB, C28275XB, 28275XA, 28275BB, 28275DA, 28275BA, 28275CA, 28275FA, Q281, 28105, C28105XA, C28105A, C28105, 28105BA, 28105CA, 28105C, 28105DA, 28105AC, 28105D, 28105A, 28105AA, C28101XB, C28101, 28101, 28101XB, 28101BB, 28101DB, 28101CB, 28101AB, 28103, C28103, C28103XB, C28103AD, 28103XB, 28103AD, 28103AB, 28103BA, 28103A, 28103AA, 28103CB, 28103LB, YZ15454, YZ19105, YZ19194, YZ19214, YZ19536, YZ19614, YZ19699, YZ19702, YZ20076, YZ20128, YZ20193, YZ20194, YZ20195, YZ20196, YZ20197, YZ20305, YZ20306, YZ20307, YZ20335, YZ20336, YZ20339, YZ20340, YZ20348, YZ20378, YZ20379, YZ20380, YZ20393, YZ20475, YZ20481, YZ20489, YZ20506, YZ20513, YZ20548, YZ20549, YZ20553
