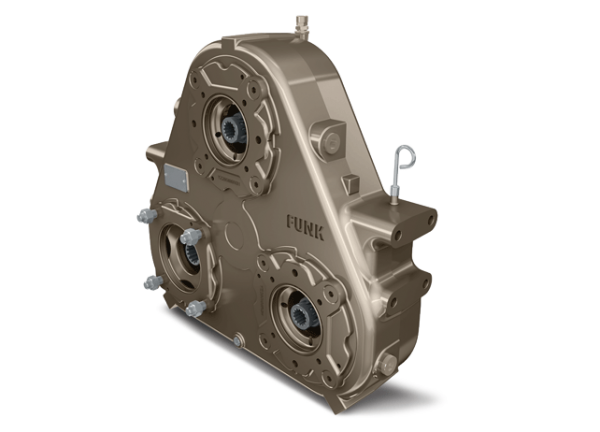

Funk triple 59000

Palmer Johnson is an authorized Funk service center and distributor. We maintain an extensive inventory of Funk 59000 Triple pump drives with an array of different gear ratio, input, and output options to quickly build a new pump drive to be ready to ship in typically 2-3 days. We understand the necessity of speed to get you back and operating and are here to make it happen. In addition, we have a large inventory of parts along with factory trained technicians that can get you back up and running in no time. Contact the experts today to learn more about how we can help you with your Funk 59000 Triple pump drive needs.


Perfect Fit

With more than 5,000 pump drive configurations up to 708 kW (950 hp), we are sure to have the pump drive that meets your needs. Our application engineers provide support to help you choose the best pump drive for your application.

High Quality

We use the latest manufacturing technology to ensure we deliver the highest quality products for you.

Fast Service

Whether you need a new pump drive or service support on an existing drive, our modular assembly system and experienced regional distribution network lets us get you what you need fast.

Integration Support

Getting the most out of your equipment depends on close integration between all components. Our application experts can help integrate your entire system from the engine to the pump drives, powershift transmissions, HMD transmissions, planetary drives, and inboard planetary axles.

Additional Features

  • Ball bearings include a built-in oil reservoir in the outer race to provide uninterrupted lubrication.
  • VitonĀ® shaft seals provide long life in high-temperature applications.
  • Engine housing adapters are available for a variety of flywheel sizes.
  • Cast iron housings are built to withstand hard use in tough applications.
  • Dedicated pathways provide lubrication to bearings and splines.
  • Internal spline adapters make it quick and easy to configure pump drives to a variety of applications.
  • High quality spur gears provide quiet operation and allow the use of ball bearings.
  • Wet splines provide a long, trouble-free life.
  • Pump adapter plates can be easily changed for use with different pump sizes.

Product Specs

  • Type Triple
  • Approximate dry weight 120-168 kg (265-370 lbs)
  • Max input power* 522 kw (700 hp)
  • Max output power (per pump pad) 268 kw (360 hp)
  • Max input torque* 1695 Nm (1250 lb-ft)
  • Max output torque 881 Nm (650 lb-ft)
  • Max input/output speed 3000 rpm

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Assembly & Model Numbers

Q593, 593, C593WXRX, C593WXXCXX, C593WXXPXX, 593WXRX, 593WXXCXX, 593WXXPXX, 593P14P1GC, 593P24C1GC, 593WXXP1S, 593P14P1AC, 593W00P1AC, 593P11P1GC, 593PKRBC, 593W11P3AC, 593P11P3GC, 593P00P1AC, 593P14P1JC, 593WFRAC, 593PXXP1JC, 593WXXP1B, 593W14P1A, 593P11P3JC, 593WKRAC, 593W14P1LC, 593W24C1JC, 593WKRGC, 593WFRGC, 593WFRJC, 593WFRBC, 593P11P2JC, 593WXXX3SC, 593WKRTC, 593W14P1TC, 593W11P3AA, 593P11P3BB, 593W11P3LC, 593W11P2GC, 593W11P2BC, 593WXXX1JC, 593W14P1BC, 593W11P3GA, 593W14P1JC, 593W14P1GC, 593P11P3BC, 593W24C1LC, 593WP141GOA, 593W11P3L, 593W14P1J, 593W14P1G, 593WFRG, 593W11P3B, 593W24C1J, 593P11P1GC, 593P21C1JC, 593P14P1GC, 593P14P1BC, 593P24C1GC, 593P11P2GC, 593P11C3EC, 593PKRBC, 593P11P3GC, 593P11C1JC, 593P14P1AC, 593P00P1AC, 593P14P1JC, 593PXXP1JC, 593P11P2JC, 593P112JC, 593P11P3JC, 593P11P3JB, 593P11P3BB, 593P11P3BC, 593W11P1GC, 593WXXX3A, 593W11P3BA, 593WFRLC, 593WXXSC, 200-454, SD1417, SD-1417, YZ15119, YZ15202, YZ15250, YZ15672, YZ15788, YZ16789, YZ17570, YZ17926, YZ18108, YZ18405, YZ19013, YZ19208, YZ16708, YZ16976, YZ18932, YZ19155, YZ19197, YZ19498, YZ19876, YZ19921, YZ20010, YZ20022, YZ20074, YZ20108, YZ20440, DZ119739, YZ18043, YZ19317, YZ19336, YZ19608, YZ19673, YZ19700, YZ19706, YZ19707, YZ19922, YZ19923, YZ19965, YZ20003, YZ20094, YZ20107, YZ20131, YZ20145, YZ20180, YZ20254, YZ20255, YZ20256, YZ20259, YZ20341, YZ20342, YZ20343, YZ20344, YZ20345, YZ20346, YZ20351, YZ20352, YZ20353, YZ20354, YZ20385, YZ20392, YZ20400, YZ20405, YZ20407, YZ20421, YZ20435, YZ20438, YZ20446, YZ20491, YZ20493, YZ20496, YZ20498, YZ20501, YZ20504, YZ20510, YZ20538, YZ15977, YZ19175, YZ19222, YZ19248, YZ19399, YZ19507, YZ19559, YZ19570, YZ19768, YZ19790, YZ19888, YZ19966, YZ20013, YZ20017, YZ20257, YZ20258, YZ20545, YZ20546, YZ20550, YZ20556, YZ19848, YZ20118
