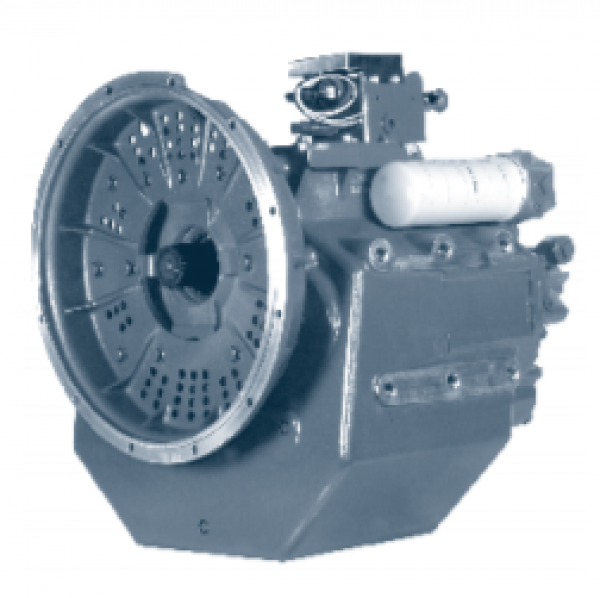

The Twin Disc MGX-5147 series consists of three models being the MGX-5147SC, MGX-5147A, & MGX-5147RV (MGX5147SC, MGX5147A, & MGX5147RV). Palmer Johnson is North America’s leading distributor for all of your MGX-5147 marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5147 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!
Standard Equipment
MGX-5147 SC & MGX-5147 A
- SAE J617 housing no. 1
- Flexible coupling for 14” flywheel (SAE J620 size 355)
- Electric GP-valve with manual override
- Profile module – interface for engagement signals
- Oil strainer and oil filter
MGX-5147 RV
- Input flange size GWB 587.50
- Electric GP-valve with manual override
- Profile module – interface for engagement signals
- Oil strainer and oil filter
Options
- SAE J617 housing no. 0
- Flexible coupling for 18” flywheel (SAE J620 size 460)
- E-Troll module – interface for engagement & trolling signals
- Oil cooler with thermostatic bypass valve
- Companion flange/ bolts set
- Monitoring devices to customer’s specification
- Mounting brackets
- Live PTO – max. 593 Nm
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – max. 641 Nm
SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt) - Hydraulic Clutchable PTO – max. 641 Nm
Shaft with key
- Authorized Distributor
- Genuine Parts
- Service and Support
Maximum 1142 kW (1531 hp) @ 2300 RPM [Pleasure Craft Duty]
