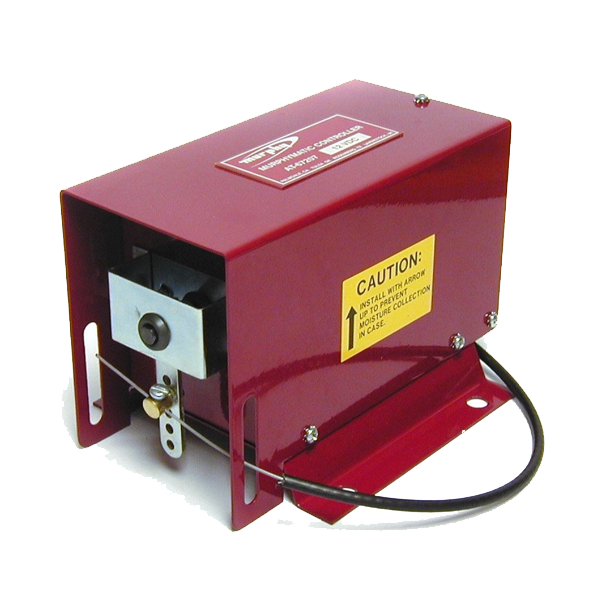

Murphy AT03069 Electro/Mechanical Controllers

  • Specifications

    Specifications

    Voltage: 11-28 VDC negative ground.

    Maximum Current: 500 mA (1/2 amp).

    Standby Current: Approx. 7 mA.

    Increase and Decrease: Inputs float at approx. 8.4 VDC. Grounding inputs causes 8-18 mA of current to flow from either.

    Torque: 25 inch pounds.

    Sealed limit switches: Factory adjusted, controls maximum travel.

    Linkage adjustment on lever arm—5 holes:
    Adjusts travel: 1-3/16 in. (30 mm); 1-11/16 in. (43 mm); 2 in. (51 mm); 2-1/4 in. (57 mm) approximately.

    Travel Time: 11 to 20 seconds depending on the voltage and force applied.

    Net Weight: 5 lb. (2.27 kg)
