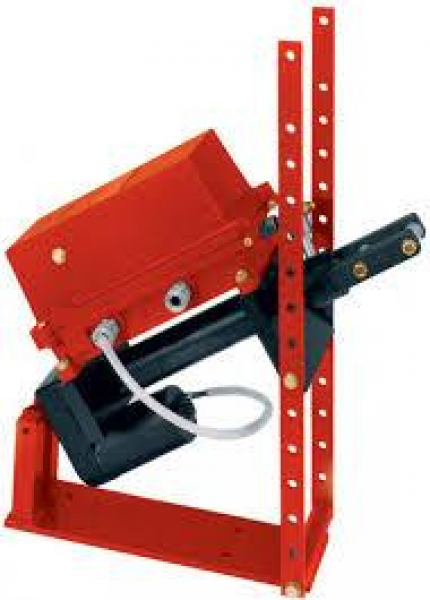

CO3 Electro/Mechanical Controllers
Features:
■ Engages and Disengages Clutch
■ 250 lb-f (1112N) or 500 lb-f (2224N) Operating Force
■ Compatible with MURPHYMATIC® Engine Controllers
■ Models Available for 12 or 24 Volt Systems
■ Two-Year Limited Warranty
■ Adjustable Stroke
-
Specifications
Specifications
Voltage:
CO3-12: 12 VDC, negative ground.
CO3-24: 24 VDC, negative ground.Travel (adjustable): 6 in. (152 mm) max.
Case Material: Cast aluminum.
Built-in Circuit Breaker: 20 A.
Operating Force:
CO3-12: 250 lb-f (1112N) max.
CO3-24: 500 lb-f (2224N) max.Duty Cycle @ 77°F (25°C):
CO3-12: 40% max. @ 125 lb-f (556N) to 25% @ 250 lb-f (1112N).
CO3-24: 100% max. @ 75 lb-f (334N) to 25% @ 500 lb-f (2224N).Speed:
CO3-12: 1.2 in./sec (3 cm/sec.) @ 0 lb-f to 1.00 in./sec. (1 cm/sec.) @ 250 lb-f (1112N).
CO3-24: 2.4 in./sec (6 cm/sec.) @ 0 lb-f to 1.35 in./sec. (3 cm/sec.) @ 500 lb-f (2224N).Drive: Self-locking ACME screw.
Current:
CO3-12: 20 amp max.
CO3-24: 14 amp max.Operating Temperature: -15 to 150°F (-26 to 66°C).
-
