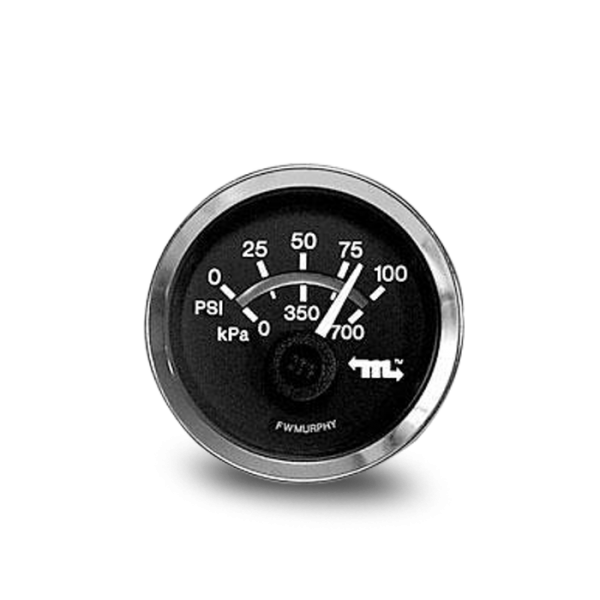

MurphyLink Series Gauges

■ Displays Critical Data Transmitted by the Murphy
Display & Diagnostic Module (MDDM)
■ Microprocessor-Driven for High Accuracy
■ For Engine or Transmission Oil Pressure, Coolant or
Transmission Temperature, 12 or 24 VDC Voltmeter,
Percent Load, Tachometer, Audible Alarm
■ LED Back Lighting
■ 100% Environmentally Sealed Case

Power Supply:

Input Voltage: 12V (10-16 VDC min. & max. voltage).
24V (18-32 VDC min. & max. voltage).
Operating Current: (@ 14 VDC) = MLA20: 27 mA min.; 50 mA max.
MLA35: 43 mA min.; 48 mA max.
Backlight:
Voltage: 12 to 14 VDC (See NOTE below).
Maximum Current: 30 mA.
