WD300 Series Panel Systems

WD300 Series

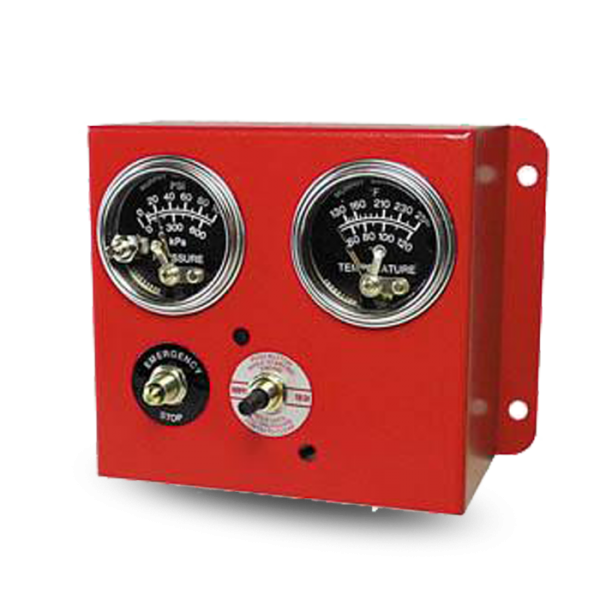

The universally applicable WD300 Series panels are the ideal control solution for a wide variety of diesel engines without shutdown solenoid in the injection pump. The standard WD300 Series panel includes basic engine protection for low oil pressure and high coolant temperature. It also includes Murphy’s SV Series solenoid fuel shut-off valve, (see bulletin SV-99026B).
WD300LV Models
For engines that have the fuel shutoff solenoid built into the injection pump. This model is also applicable to battery ignition engines.
Panel Kits Include:
• Low lube oil pressure Swichgage instrument
• High coolant/temperature Swichgage instrument
• 117PH magnetic switch
• SV Series solenoid fuel shutoff valve
• PB128S emergency stop push button
-
Specifications
Low Lube Oil Pressure SWICHGAGE®:
0-100 psi (0-689 kPa) [0-6.89 bar]
1/8 NPT process connectionHigh Coolant SWICHGAGE®:
130-250°F (54-121°C)
48 in. (1.2 m) capillary
1/2 NPT process connection117PH Magnetic Switch
SV Series Solenoid Fuel Shutoff Valve: 12 or 24 volt (specify)
