WHB Series Panel Systems

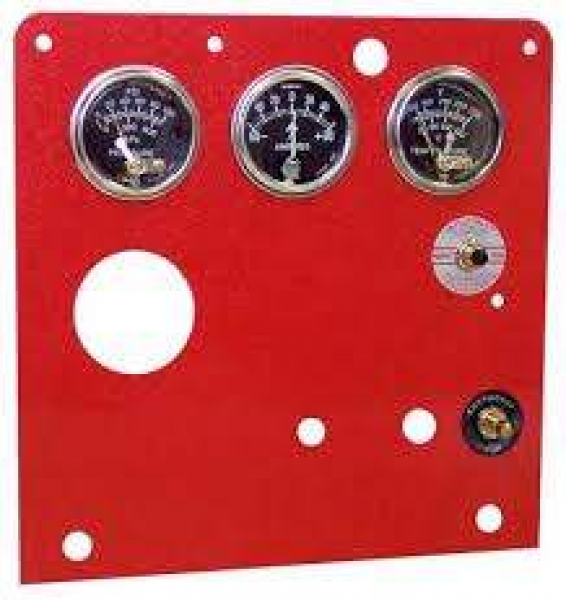

The WHB Series open type panels are the industry standard for High Plains irrigation engines. These panels bolt directly to the engine flywheel housing. They include Swichgage protection for low engine oil pressure and high coolant or high oil temperature, and have provision to add an additional Swichgage instruments, such as pump discharge pressure, voltage regulator, throttle cable, and start button or switch.
Features:
■ Ideal for High Plains Irrigation Engines
■ Mounts Directly to Engine Flywheel Housing
■ Swichgage Instruments for Low Oil Pressure, High Coolant Temperature and Ammeter
■ Provision for Additional Instruments
-
Notes
Low Lube Oil Pressure Swichgage instrument:
0-100 psi (0-689 kPa) [0-6.89 bar]
1/8 NPT process connectionHigh Coolant/Oil Temperature Swichgage instrument:
130-250°F (54-121°C)
48 in. (1.2 m) capillary
1/2 NPT process connectionAmmeter: 60-0-60
Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
Shipping Dimensions: 9.5 x 9 x 5 in. (241 x 229 x 127 mm)
