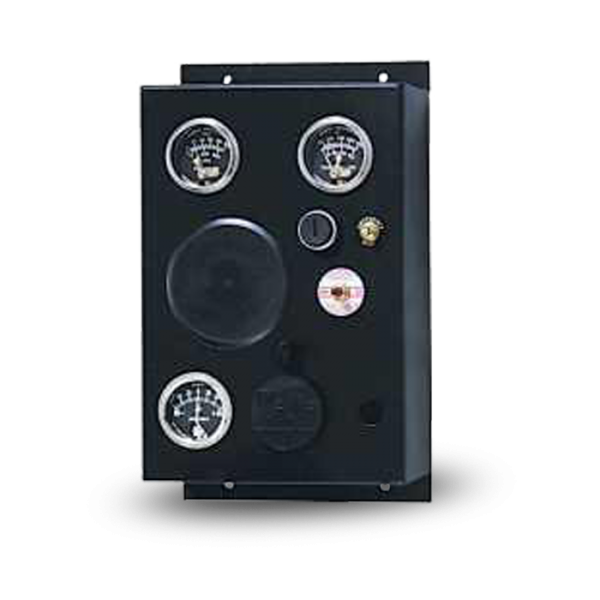

W0168 / W0241 Panel Systems
The W0168 and W0241 panel kits are universal-fit instrument panels for most industrial engines. They include Swichgage protection for low engine oil pressure and high coolant or high oil temperature. These Panel Kits are similar–the W0168 has a start/stop key switch and the W0241 has a start push button.
Features:
■ Protection Against Dangerously Low Oil Pressure or High Temperature
■ Closed-loop Circuitry Ensures Proper Operation at All Times
■ Operates on 12 or 24 VDC Systems*
■ Complete Kit Ready for Easy Installation
■ Universal Mounting Panel
-
Specifications
Specifications
Low Lube Oil Pressure Swichgage Instrument:
0-100 psi (0-689 kPa) [0-6.89 bar]
1/8 NPT process connectionHigh Coolant/Oil Temperature Swichgage Instrument:
130-250°F (54-121°C)
48 in. (1.2 m) capillary
1/2 NPT process connection518PH Magnetic Switch: 12 or 24 volt (specify)
Ammeter: 60-0-60
