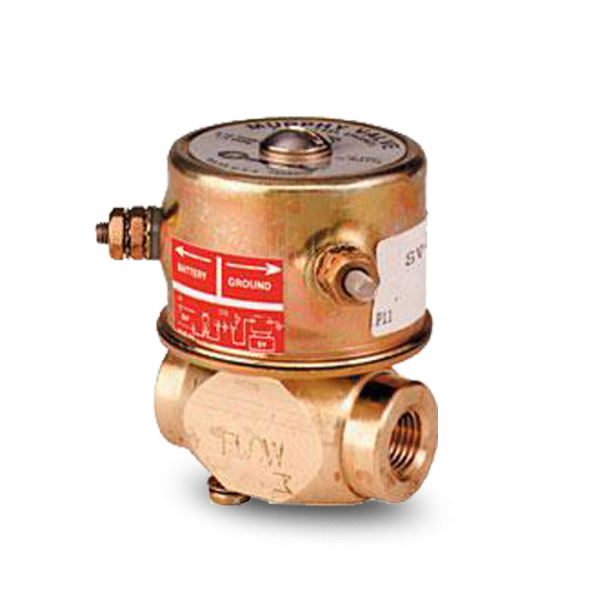

SV Series Fuel Valve

Features:

• Solenoid Operated Fuel Shutoff Valve
• Diesel Engines
• Diesel Driven Pumps and Compressors
• High Pressure Models
• Select from 12 or 24 VDC Models

Electrical Rating: 12 VDC, 10 watts

Orifice: 3/16 in. (5 mm) diameter (optional 1/4 in. [6 mm] diameter). See chart.

Body Connections: 1/4 NPT inlet/outlet

Maximum Opening Pressure:
3/16 in. (5 mm) orifice: 30 psi (207 kPa) [2.07 bar]
1/4 in. (6 mm) orifice: 15 psi (103 kPa) [1.03 bar]
