Twindisc mgx 5600

Palmer Johnson is North America’s leading distributor for all of your Twin Disc MGX-5600 (MGX5600) marine gear transmission needs. Whether you are needing a replacement marine gear transmission, parts to do the repair yourself, or if you are wanting the factory trained technicians of PJ’s service department to rebuild your Twin Disc MGX-5600 transmission, we’ve got you covered. Contact us today and you’ll be back up and running in no time!

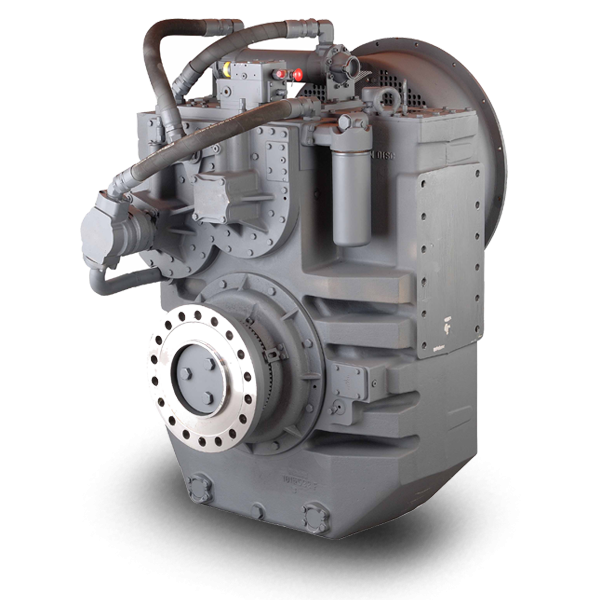

MGX-5600

Standard Equipment

  • Vertical offset, cast iron housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Mounted oil cooler for raw or fresh water cooling
  • Oil strainer and oil filter
  • Companion flange/bolt set

Options

  • SAE J617 housing no. 0
  • SAE J617 housing no. 00
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • Flexible coupling for 21” flywheel (SAE J620 size 530)
  • Input flange for freestanding installation
  • Hydraulically operated internal shaft brake
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Output shaft driven trailing pump
  • Special companion flange/bolts set for shaft brake application
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Maximum 1760 kW (2360 hp) @ 1800 RPM [Continuous Duty]
