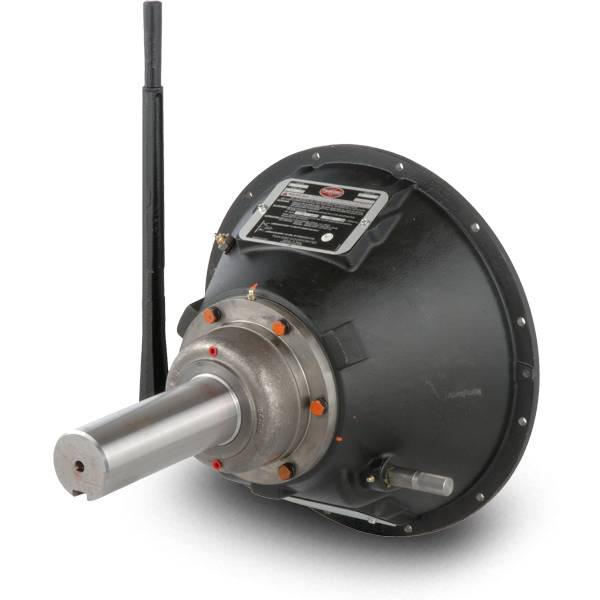

Twin Disc SP314P PTO

The SP314P series PTO is suitable for both inline and sideload applications. The SP314P (SP314, SP314P0, SP314P1) power take-off is used in a wide array of applications with the most common being sand dredges, irrigation pumps, crane & hoisting, metal shredders, recycling equipment, jaw crushers, and compressors.

Palmer Johnson Power Systems is North America’s leading Twin Disc distributor with over 40 years of experience servicing the Twin Disc product line. We have an expansive inventory of replacement parts and complete units for the SP314P series PTO’s. In addition to our inventory, we have product experts that can troubleshoot your issues and offer sound solutions as well as factory-trained technicians that can repair your PTO and get you back up and running quickly. No matter the need for your SP314P power take-off, we are here to help. Contact us today!


Key Features

  • Tapered roller main bearings
  • Optional sintered iron plates
  • Optional ball bearing throw out
  • Built-in hex nut
  • Creates suitable application torque capacity
  • More suitable for side load applications
  • Allows for more frequent engagements
  • Creates 25% higher torque capacity
  • Eases adjustment verification
  • Notes

    Active Twin Disc BOM & Assembly Numbers: SP314P001, SP314P006, SP314P007, SP314P008, SP314P012, SP314P103, SP314P104, SP314P105, SP314P109, SP314P112, SP314P122, SP314P125, SP314P126, SP314P130, SP314P132, SP314P133, SP314P134, SP314P135, SP314P136, SP314P137, SP314P138, SP314P139, SP314P140, SP314P141, SP314P142, SP314P143

    Legacy Twin Disc BOM & Assembly Numbers: SP314P002, SP314P003, SP314P004, SP314P005, SP314P009, SP314P010, SP314P011, SP314P101, SP314P102, SP314P106, SP314P107, SP314P110, SP314P113, SP314P115, SP314P116, SP314P117, SP314P118, SP314P119, SP314P120, SP314P123, SP314P124, SP314P127, SP314P128, SP314P129, SP314P131

    OEM Assembly Numbers:

      • SP314P001 equals CAT P/N 4P-0410, 4P0410
      • SP314P101 equals Cummins Engine Company P/N 3080449, Morbark P/N 24541-401, 24541401
      • SP314P103 equals Cummins Engine Company P/N 3002100
      • SP314P104 equals CAT P/N 1W-8856, 1W8856
      • SP314P105 equals Klauer MFG P/N 71875, Bandit P/N 900-6954-27, 900695427
      • SP314P112 equals Bandit P/N 900-6939-31, 900693931
      • SP314P113 equals Morbark P/N 24541-405, 24541405
      • SP314P115 equals Morbark P/N 24541-406, 24541406
      • SP314P126 equals Bandit P/N 900-6942-41, 900694241
      • SP314P138 equals Wausau Equipment P/N SG71875, 71875
      • SP314C001 equals Cotta P/N 80VX404
      • SP314C002 equals Cotta P/N 80VX1880, Morbark P/N 24542-628, 24542628, Vermeer P/N 156154001, Bandit P/N 900-6917-10, 900691710, 900-1914-95, 900191495
      • SP314C003 equals Cotta P/N 80VX1010
      • SP314C006 equals Cotta P/N 80VX2365
      • SP314C009 equals Morbark P/N 24541-415, 24541415

      Maximum input torque (lb-ft) Class I - 2430

      Clutch Maximum HP Rating

        • Class II - 564
        • Class III - 376
        • Class IV - 282
