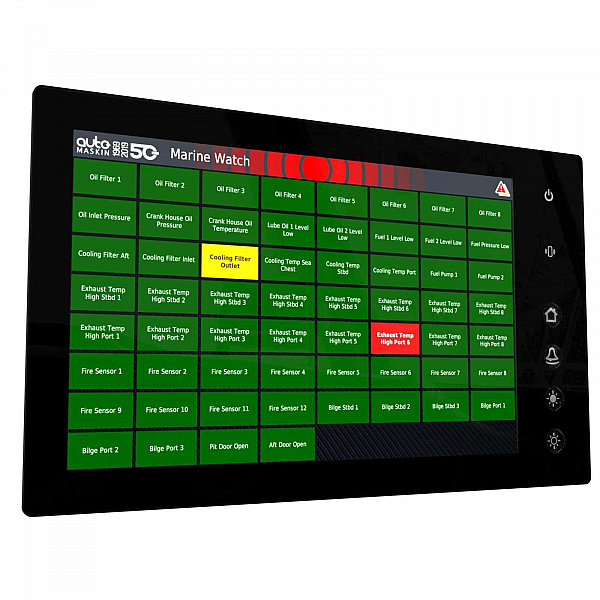

Marine Watch Operator Panel

The Marine Watch Operator Panel has an easy to use operator interface displaying instant recognition of vessel status in the highly effective and attractive alarm management system Marine Watch.

The 12.1″ color touchscreen is a marine-grade high-resolution panel. The system architecture is scalable and can be used in small to medium-sized installations in configurations of up to 120 switch and 16 analog input channels. One or more operator panels can be installed for remote monitoring and response.

SKU: 1500073

  • Specifications

    The Marine Watch Operator Panel has an easy to use operator interface displaying instant recognition of vessel status in the highly effective and attractive alarm management system Marine Watch.

    The system architecture is scalable and can be used in small to medium-sized installations in configurations of up to 120 switch and 16 analog input channels.

    Bringing alarm channels from multiple processes and multiple alarm panels into Marine Watch reduces risk, and gives the operator a clear view of vessel status.

    The I/O modules are in a separate cabinet and communicates to the operator panel(s) on a standard ethernet cable. One or several operator panels can be installed for remote monitoring and response.

    The 12.1″ color touchscreen is a marine-grade high-resolution panel. The configuration is built right into the touch screen panel and access is protected with a PIN-code. No tools are required to create, adjust or modify alarms. Each channel can be configured with a button-text description up to three lines, delay time, inverted channel, etc.

    Additionally, the use of signal groups makes it possible, by simple means – to group signals that naturally belong together.

    A built-in buzzer will sound in the event of an alarm, and the corresponding rectangle flashes in red. The alarm is then acknowledged by pressing the flashing rectangle.

    Fixed output channels provide indications for remote lights and buzzers for common alarm annunciation.

    Marine Watch I/O Panels can be supplied in 12 VDC and 24 VDC versions, in I/O capacities ranging from 60 up to 120 switch input channels and up to 16 analog input channels.
