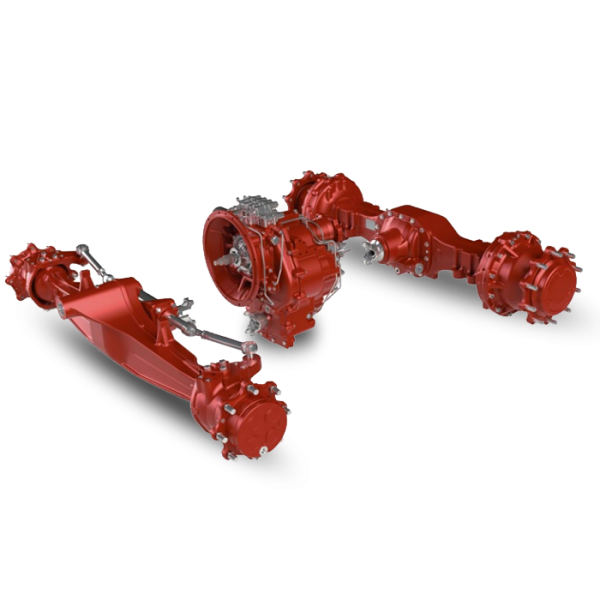

Carraro backhoe axle

The Carraro BHL Axles embody solutions that are able to meet requirements for both entry level machines, which call for robust and flexible configurations, and premium machines, which demand the best performance in fuel efficiency and productivity. Each axle model is available with several reduction ratios, multiple widths, and various vehicle mounting interfaces. These features, combined with the large number of available options, ensure that virtually any machine usage or application can be met. Every axle has been designed for use under the severest conditions, with a high load capacity and robust gear design to ensure an extended service life with improved durability.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

TCB80 2WDTCB80 4WD
Power Rating82 kW @ 2,200 rpm82 kW @ 2,200 rpm
Max input Torque750 Nm750 Nm
Max input speed2,400 rpm2,400 rpm
Internal Pump TypeGearGear
Engine Flywheel InterfaceSAE 3SAE 3
Output Flage TypeYoke 1410Yoke 1410
2WD output drop from Engine180 mm180 mm
4WD output drop from Engine323 mm
Vehicle Pump InterfaceSAE CSAE C
Torque Converter SizeW300W300
Speed Gear4 Fwd + 4 Rev4 Fwd + 4 Rev
Fwd/Rev Ratios Option1:1 / 1:0.8291:1 / 1:0.829
