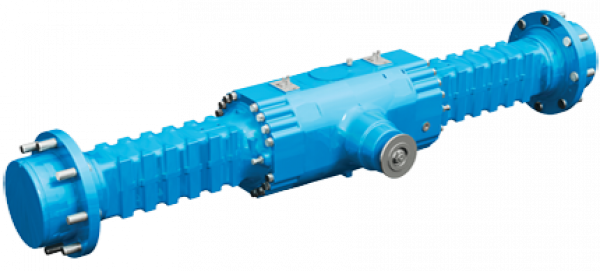

Spicer Model112 Rigid Planetary Axle

The Spicer® 112 axle features a robust three-piece modular design, providing superior reliability for construction and material-handling vehicles. This axle allows greater customization and offers multiple configurations for various vehicles specification. With a wide range of ratios available, the Spicer 112 axle enhances traction and maneuvering in challenging conditions and the service-free wet disc brake design help to reduce heat generation and minimize power loss.

PRODUCT DATA:

  • Dynamic Load Capacity (Kg): 8,000
  • Maximum Output Torque (Nm): 34,000
  • Overall Ratio Range: 12.798-26.250
  • Flange to Flange Range: 1400-1920
  • Wheel Bolt Circle Diameter (mm): 275 or 335

ADDITIONAL FEATURES:

  • Planetary Ratio Options: 6.000
  • Bevel Set Ratio Options: 2.133, 2.286, 2.571, 2.818, 2.917, 3.091, 3.182, 3.444, 3.556, 3.778, 3.875, 4.125, 4.375
  • Flange to Flange Options: 1,400, 1,530, 1,660, 1,790, 1,920
  • Mounting Options: Rigid, trunnion, TP clevis
  • Input Flange Options: Hydrostatic motor, DIN 100/120, SAE 1410, Mechanics 5C, end yoke 1410/1480
  • Service Brakes: 4, 6, or 8
  • Differential Options: Open, limited slip 45%, 100% lock, no spin

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Available in the following:

  • 112
  • 112HD
  • 112WE
