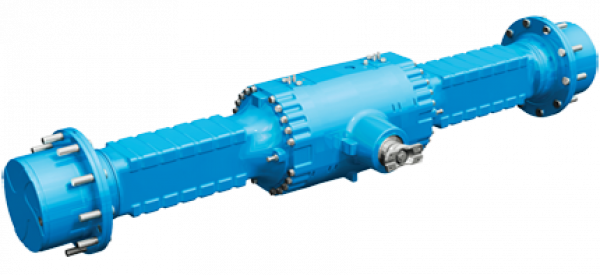

Spicer 113 Rigid Planetary Axle

Spicer® 113 axle features a robust three-piece modular design, providing superior reliability for construction and material-handling vehicles. This axle allows greater customization and offers multiple configurations for various vehicles specification. With a wide range of ratios available, the Spicer 113 axle enhances traction and maneuvering in challenging conditions and the service-free wet disc brake design help to reduce heat generation and minimize power loss.

PRODUCT DATA:

  • Dynamic Load Capacity (Kg): 15,296
  • Maximum Output Torque (Nm): 650,000
  • Overall Ratio Range: 14.772-26.250
  • Flange to Flange Range: 1080-2050
  • Wheel Bolt Circle Diameter (mm): 335 or 425

APPLICATIONS:

  • Wheel loaders

ADDITIONAL FEATURES:

  • Planetary Ratio Options: 6.000
  • Bevel Set Ratio Options: 2.462, 3.091, 3.222, 3.444, 3.667, 4.125, 4.375
  • Flange to Flange Options: 1,080, 1,530, 1,920, 2,050
  • Mounting Options: Pad, CL trunnion, TP clevis
  • Input Flange Options: Hydrostatic motor, DIN 120/150, Mechanics 5C/6C/7C, end yoke 1410/1480, SAE 1410, Dana 1480-1550
  • Service Brakes: 6 disc, wet disc brake (integrated), internal SAHR
  • Differential Options: Open, limited slip 35%/45%, 100% mechanical lock, no spin
