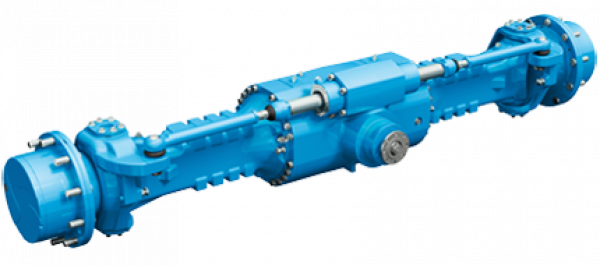

Spicer 213 Industrial Planetary Steer Axle

The Spicer 213 axle features a robust three-piece modular design, providing superior reliability for construction and material-handling vehicles. This axle allows greater customization and offers multiple configurations for various vehicles specification. With a wide range of ratios available, the Spicer 213 axle enhances traction and maneuvering in challenging conditions and the service-free wet disc brake design help reduce heat generation and minimize power loss.

PRODUCT DATA:

  • Dynamic Load Capacity (Kg): 15,000
  • Maximum Output Torque (Nm): 65,000
  • Overall Ratio Range: 15 up to 22
  • Flange to Flange Range: 2050-2310
  • Wheel Bolt Circle Diameter (mm): 335

APPLICATIONS:

  • Telehandlers
  • Drill rigs
  • Load haul dumpers
  • Mining applications

ADDITIONAL FEATURES:

  • Planetary Ratio Options: 6.000
  • Bevel Set Ratio Options: 2.462, 3.091, 3.222, 3.444, 3.667, 4.125, 4.375
  • Flange to Flange Options: 2,050, 2,100, 2,180, 2,310
  • Mounting Options: Rigid, CL trunnion, TP tunnel
  • Input Flange Options: Hydrostatic motor, DIN 120/150, SAE 1410 Mechanics 5C, 6C, 7C, End Yoke 1410/1480, Dana 1480-1550
  • Service Brakes: 6 disc, wet brakes (integrated), internal SAHR
  • Differential Options: Open, limited slip 35%/45%, no spin, 100% mechanical lock
  • Maximum Steering Angle: 55°
