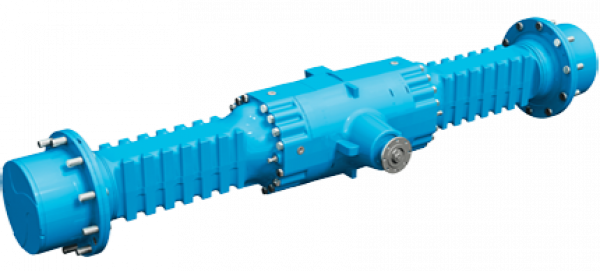

Spicer 123 Rigid Planetary Axle

The Spicer® 123 axle features a robust three-piece modular design, providing superior reliability for construction and material-handling vehicles. This axle allows greater customization and offers multiple configurations for various vehicles specification. With a wide range of ratios available, the Spicer 123 axle enhances traction and maneuvering in challenging conditions and the service-free wet disc brake design help to reduce heat generation and minimize power loss.

PRODUCT DATA:

  • Dynamic Load Capacity (Kg): 12,236
  • Maximum Output Torque (Nm): 53,000
  • Overall Ratio Range: 12.858-26.250
  • Flange to Flange Range: 1080-1920
  • Wheel Bolt Circle Diameter (mm): 335 or 425

APPLICATIONS:

  • Construction vehicles

ADDITIONAL FEATURES:

  • Planetary Ratio Options: 6.000
  • Bevel Set Ratio Options: 2.143, 2.286, 2.462, 3.100, 3.444, 3.667, 3.875, 4.125, 4.375
  • Flange to Flange Options: 1,080, 1,400, 1,660, 1,790, 1,920
  • Mounting Options: Pad, CL trunnion, TP clevis
  • Input Flange Options: Hydraulic motor, DIN 120/150, mechanics 5C/6C/7C, end yoke 1410/1480, SAE 1410, Dana 1480
  • Service Brakes: 6 disc, wet disc brakes (integrated), internal SAHR
  • Differential Options: Open, limited slip 35%/45%, 100% mechanical lock, no spin
