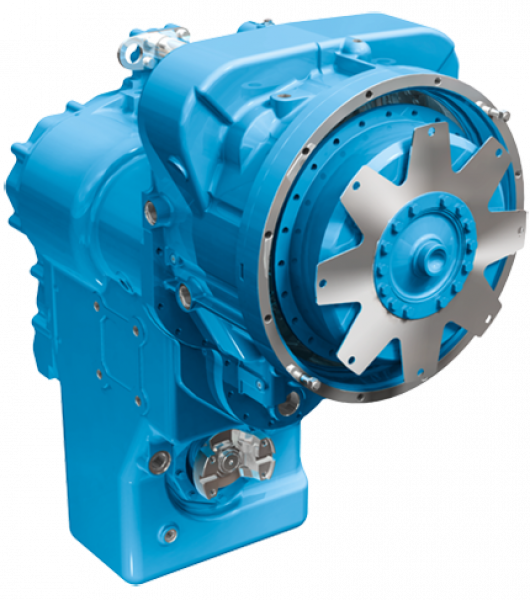

Spicer HR36000 Series Powershift Transmission

The Spicer 36000 transmission provides optimal performance for heavy-hauling and mining applications. Available in numerous configurations, ratios, and options offers highly adaptable solutions to meet almost any vehicle requirement.

PRODUCT DATA:

  • Input Power (kW): 150-240
  • Maximum Turbine Stall Torque (Nm): 7,586
  • Speed Number: Short Drop: 3x3, 4x4 Long Drop: 3x3, 4x4, 6x3
  • Vertical Drop (mm): S.D. = 317.8 L.D. = 609.6

APPLICATIONS:

  • Heavy-duty applications
  • Rough terrain lift trucks
  • Wheel loaders
  • Rough terrain cranes
  • Other mining, construction, and industrial machinery

ADDITIONAL FEATURES:

  • Transmission Ratios: See spec sheet
  • Maximum Input Speed (rpm): 14" & 15" = 2800 16" = 2700
  • Configurations: Short, long
  • Converter Bell Housing: SAE no. 1 (Dry)
  • Converter Stall Torque Ratio Range: 1.78-3.09
  • Auxiliary Pump Drive Torque Capacity (Nm): Max Intermit. = 578 Max contin. = 476
  • Key Options: Lock-up, modulation, inching, de-clutch

Typical specs/models: 15.5HR36432-12, 15.5HR363552, 15.5HR36437-3
