Eaton Airflex Single Passage Rotorseals

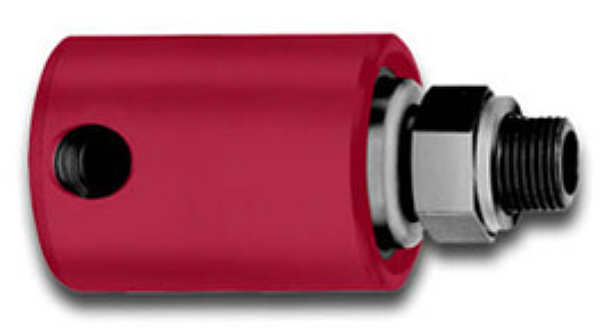

Palmer Johnson is an authorized distributor for the Eaton Airflex Single Passage Rotorseals. The Eaton Airflex Single Passage Rotorseals consist of the AA2, B3, C2, and RH series. These single passage rotorseals allow the transfer of media through a single shaft passage. The AA2, B3, and C2 rotorseals are designed for medium volume single passage requirements and are offered in 1/8“, 3/8”, and 1/2“ housing port sizes. The RH series of Eaton Airfelx Single Passage Rotorseals is designed for applications that require a large flow volume single passage. This series is offered in 3/4”, 1“, 1 1/4”, 1 1/2“, and 2” housing port sizes.

Palmer Johnson is the go-to source for all of your Eaton Airflex Single Passage Rotorseal needs including new applications, replacement rotorseals, parts support, and technical experts that can advise you on exactly what you’re needing to get the job done right. Contact us today!


Eaton Airflex Single Passage Rotorseal Common Model & Part Numbers

Size/Model NumberPart Number
Eaton Airflex AA2 Rotorseal145631E
145631L
Eaton Airflex B3 Rotorseal145106BQ
145106BU
145106BV
145106BW
Eaton Airflex C2 Rotorseal145107BG
145107BK
145107BM
145107BN
145107BP
145107BS
Eaton Airflex 3/4" RH Rotorseal145487AA
Eaton Airflex 1" RH Rotorseal145488AB
145488L
Eaton Airflex 1 1/4" RH Rotorseal145489AA
Eaton Airflex 1 1/2" RH Rotorseal145461AA
Eaton Airflex 2" RH Rotorseal46175AA
  • Notes

    Eaton Airflex Single Passage Rotorseal Product Features

    Type RH

    • Perfect for applications that require a large flow, single-passage Rotorseal
    • Incorporates a mounting flange for attachment to the machinery shaft or assembly
    • External American National Pipe Threads on the inlet Rotorseal shaft facilitate supply line connections
    • Available in five standard port sizes: 0.75", 1.0", 1.25", 1.50", 2.0"


    Types AA2, B3 and C2

    • Meets most medium-volume, single-passage requirements
    • External threads on the seal shaft and standard pipe threads on the inlet port simplify installations
    • Available in three standard housing port sizes: 1/8", 3/8", 1/2"
