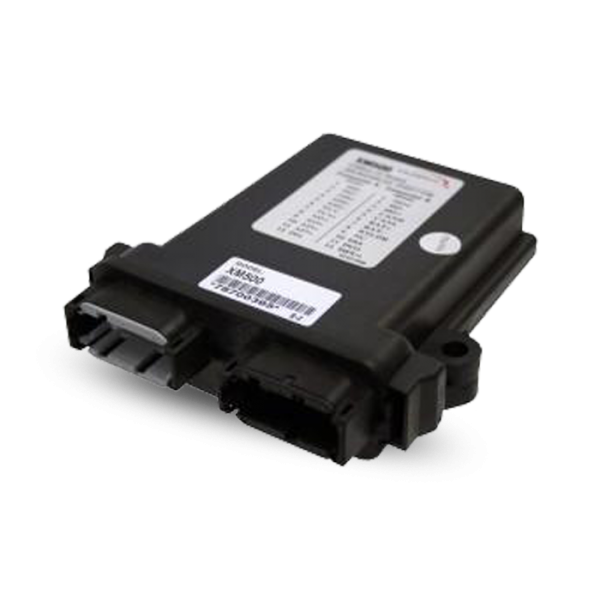

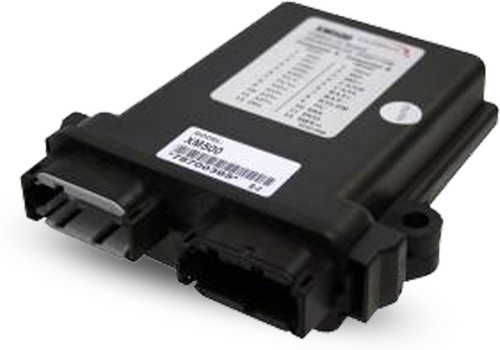

XM500

Features

• Adds I/o To J1939 Network

• Works With Standard J1939 Display Modules

• Wide Operating Temperature Range

• Industry Standard Deutsch Enclosure and Connectors

• Custom Programming Available

• Easy-to-Use Configuration Tool Available

Power Input: 8 to 32 VDC

Operating Temperature: -40 to 85°C (-40° to 185°F)

Digital Inputs: 4– Ground or battery positive activation

Digital Outputs*: 2 – Sinking (500 mA)
*(Outputs are NOT reverse polarity protected. Damage will occur if B+ is connected to the outputs. Damage incurred from improper installation is not covered under the FW Murphy limited warranty policy.)
Thermocouple Input1: Type K and Type J
Analog Inputs2:
• 1 – battery supply voltage (dedicated)
• 7 – configurable as 0-5 VDC, 4-20 mA, resistive senders3 or used as an additional Digital Input

Speed Sensing input: Magnetic Input (2 to 120 VAC RMS from 30 to 10,000 Hz.)

Communication Ports: CAN J1939

LED Indicators:
• PWR - Power On
• COP - Computer Operating Properly
• CAN - CANbus Active

Product Weight: 10 ounces
