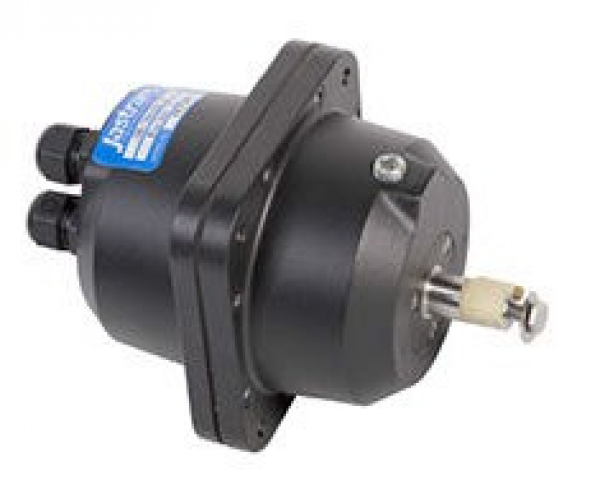

Jastram electric wheel

The EW provides full follow-up electric wheel control. When the traditional steering wheel is turned the EW produces an analog rudder command signal. The rudder will then follow-up to the position commanded by the movement of the wheel.

  • Compatible with all Jastram Full Follow-up steering systems.
  • Standard shaft size for customer supplied wheel
  • The EW200 provides 4 turns lock to lock
  • Multiple output signals are available to control a second amplifier or a rudder order indicator
  • Steering wheel “feel” is adjustable
  • The Internal mechanism is protected by a slip clutch to prevent damage to the unit
  • Rudder Order Indicators driver boards are optional
    • ROI’s are recommended so the helmsman knows where the rudder will follow-up to
  • Waterproof and corrosion-resistant housing, with an IP 66 rating

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Recommended Cable: 20 AWG, 3 Conductor, Standard, Copper wire
Shaft Size: Stainless steel shaft with ¾” shaft, 1:12 Taper
Voltage: 12, 24 or 36 VDC
