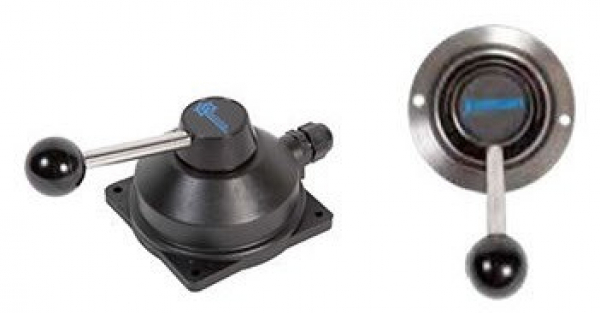

Jastram Jog Lever

The Jastram Jog Lever provides non-follow-up (time-dependent) electric control. Jastram Jog Levers operate either completely on (as long as the switch is activated) or completely off (when it is released).
- Compatible with all Jastram’s electro-hydraulic steering systems and most third-party autopilots
- Four versions available:
- JO100-1 contains one set of microswitches
- JO100-2 contains two sets of microswitches
- JO300-1 yacht styling with one set of microswitches
- JO300-2 yacht styling with two sets of microswitches
- The spring-loaded jog switch returns to center when released (The rudder remains where positioned when the lever is released)
- Waterproof and corrosion resistant housings, with an IP 66 rating
- Supplied with 5ft (1.5m) of cable
Cable Requirements: 18 AWG, 3 Conductor, Standard Copper wire
Voltage: 12, 24 or 36 VDC
