Panoramic Rudder Indicator

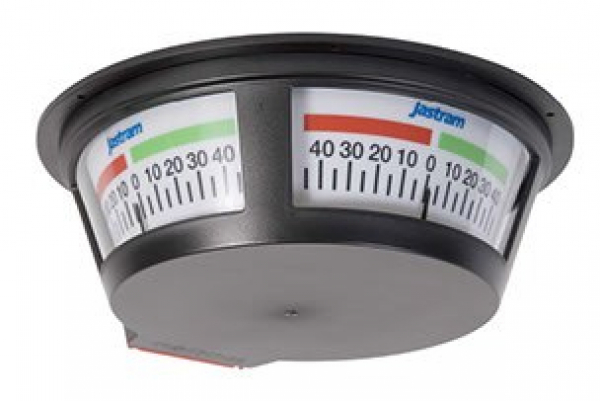

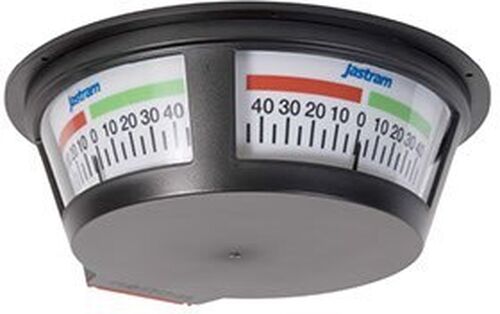

The Largest of the Indicators is the 3300 overhead three faced panoramic indicator. These are stand-alone systems comprised of three main components:
- A three faced panoramic Rudder Angle Indicator (RAI 3300)
- RAI 3300 power Supply
- Rudder Feedback Unit
- Built in dimmer allows for adjustment of the backlight
- Deckhead mounted at any convenient location in the wheelhouse
- Two Power Supply options are available:
- Input voltage of 12-24 VDC and outputs 24 VDC
- Input voltage of 100-40 VAC and outputs 24 VDC
- Cable requirements 16 AWG, 3 wire, shielded
