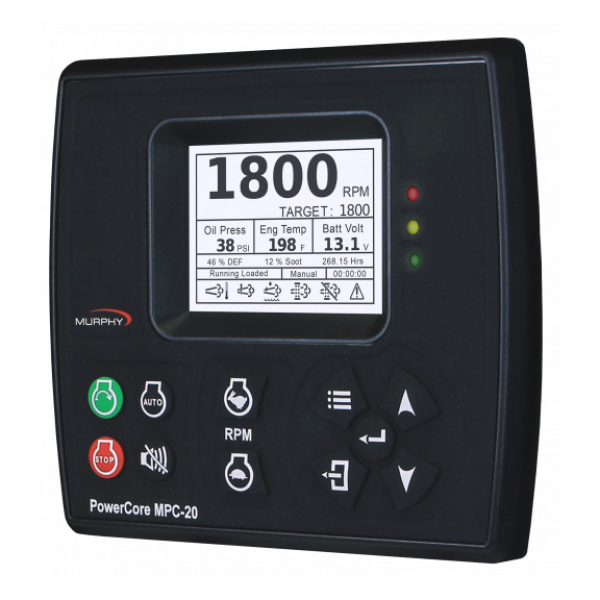

Powercore MPC-20

Murphy’s PowerCore MPC-20 is a powerful, all-purpose industrial controller designed to work in the harshest environments on most any engine-driven application.

Targeted for pump and irrigation applications, the MPC-20 is a powerful, fully-sealed IP67-rated all-purpose industrial controller built to withstand harsh environments. Tier 4 / Stage IV ready with auto and manual start, the MPC-20 includes various throttling options and a real-time clock. Easily viewable in full-sun conditions, MPC-20 has a large 3.8-inch easy-to-read, monochrome transflective LCD. It is engineered for incredibly easy initial setup and is configurable by the user to meet the most versatile applications, allowing for quick uptime and less headaches on the manufacturing floor or in the field. Although a configuration tool is not required, the easy-to-use PowerVision Configuration Studio® software allows configuration of set points on a PC to save for future loading. The MPC-20 is also available in an ML2000 panel solution and can also be remotely automated and monitored using Murphy CONNECT telematics.

  • Display: 3.8” Monochrome LCD, Transflective, 320 X 240 QVGA with White Backlight
  • Keypad: 11 Silicone Tactile Feedback Buttons
  • LEDs: (1) Red, Shutdown, (1) Amber, Warning, (1) Green, Auto Mode
  • Outputs:
    • (2) 1A Max Low-side
    • (2) 2A Max High-side
    • (2) 200mA Max 5VDC
    • (1) 0-5VDC Analog
    • (6) 10A Max Form C Relays
  • Inputs:
    • (8) Analog, Configurable as Resistive, 0-5VDC, 4-20mA or Digital Ground
    • (6) Digital, Configurable as Battery or Ground
    • (1) Frequency, (2Hz - 10KHz, 3.6VAC-120VAC)
  • Communications:
    • (1) CAN 2.0B, 250 kbps, J1939
    • (1) RS485, Modbus RTU
    • (1) USB, Programming
  • Power Input: 8-32VDC, Reverse Polarity & Load Dump Protection
  • Total Current Consumption: 18W Max without 2 2A High-sides, active, 146W Max with 2 2A Highsides active.
  • Dimensions: 208.7mm (L) x 189.7mm (W) x 57.5mm (H)
  • Mass: 0.9kg (2.0lb)
  • Operating Temperature: -40°C to +85°C (-40°F to 185°F)
  • Storage Temperature: -40°C to +85°C (-40°F to 185°F)
  • EMI/RFI: SAE J1113
  • Shock: 50G in X, Y, Z Axes
  • Vibration: Random, 7.86 Grms (5-2000Hz), 3 Axes
  • Sealing: IP67 Complete Controller, IP66 Panel Mount with Gasket (Minimum 14Ga Metal Plate)
  • Case: Polycarbonate
  • Mating Connector: Delphi, SICMA 90 Position
  • Shipping Weight: 2lbs. 7.1 oz (1.11 kg.)
  • Shipping Dimensions: 9.5 x 9 x 5 in. (241 x 229 x 127 mm.)
