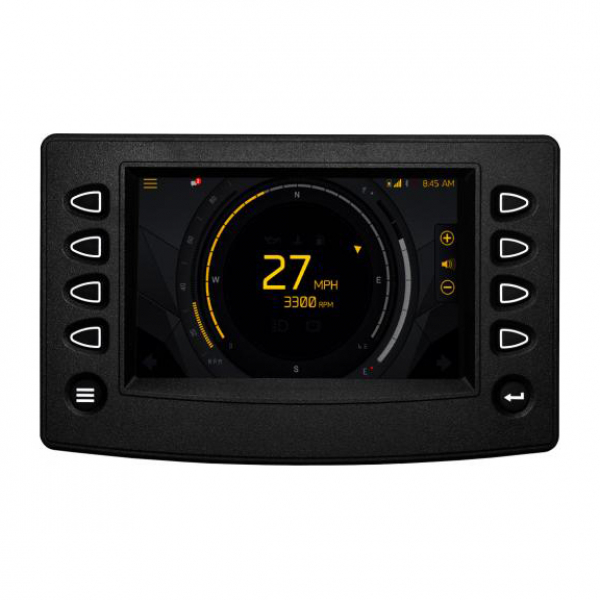

Murphy's PowerView^® 780 display offers customization and all-weather durability.

The PowerView 780 display is a full-featured, configurable display that shows integrated engine, transmission and diagnostic information in an easy-to-read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CAN bus. The PV780 features a full-color, 7-inch bonded LCD for brighter, smoother graphics and best-in-class sunlight readability. The rugged design makes this display a great solution for extreme environments. The PV780 display is compatible with PowerVision Configuration Studio^®which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.

Authorized Distributor
Genuine Parts
Service and Support

Computing
- Processor: Freescale™ i.MX357, 32 bit, 532 MHz, ARM11 core
- Operating System: QNX^® Realtime Operating System
- Storage: 2 GB flash memory
- RAM: 128 Mbytes SRAM
Display
- Screen Size: 7 inches (178 mm)
- Type: Bonded color transmissive TFT LCD, 16-bit color
- Resolution: 800 x 480 pixels @ 60 Hz (WVGA)
- Contrast Ratio: 400:1
- Brightness: 1000 cd/m² (LED, 40,000 hr. minimum)
- Surface: print/glare-free glass
- Viewing Angle: ±65° horizontal, +55°/-65° vertical
- Orientation: Landscape or portrait
- Touch Panel (optional): Projected capacitive (PCAP)
Hardware
- Keypad: 10 tactile configurable soft keys with white LED backlight
- Real time clock: with Li-ion rechargeable battery backup
- Connectors: 2 AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
- Video Inputs: 3 NTSC/PAL (single channel viewable)
- Dimensions: 8.37 x 6.0 in. (212.5 x 152.3 mm) landscape
- Unit Depth: 3.57 in. (90.8 mm)
- Case Material: PC/ABS, ISO 3795 (SAE J369, FMVSS 302) rated
- Mounting Options: Front mount, back mount or RAM mount
Communication
- CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
- Serial: RS-485 serial (Modbus: master/slave or PVA gauge)
- USB: (1) USB 2.0 host (full speed)
Electrical
- Operating Voltage: 6-36 VDC, reverse polarity protected
- Outputs:
  - (1) 500mA switched low-side
  - (1) Frequency Out (2Hz - 3 kHz, Vbat rms square wave) for tach
- Inputs:
  - (3) Analog 0-5VDC, 4-20 mA, or resistive, 10-bit resolution
  - (5) Discrete Digital, Active High
  - (1) Frequency In (2Hz - 10 kHz), 5Vpk-pk min, 120Vpk-pk max

Environment
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Storage Temperature: -40°F to +185°F (-40°C to +85°C)
- Protection: IP66 and 67, front and back.
- Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axes
- Shock: ±50G in 3 axes
- Electrical: J1113-2, -4, -11, -13, -21, -26 and -41
- MC/EMI:
  - 2004/108/EC and 2006/95/EC directives
  - EN 61000-4-3 (radiated EMF immunity radiated)
  - EN 61000-4-4 (EFT immunity power and I/O lines)
  - EN 61000-4-5 (surges power lines)
  - EN 61000-4-6 (RF immunity)
  - EN 61000-4-8 (magnetic field immunity)
  - EN 60945 (ESD)
  - EN 60945 (conducted emissions)
  - HYBRID EN 60945 CISPR 11 CLASS B (radiated emissions)
- Certifications:
  - CE
  - E-mark capable
