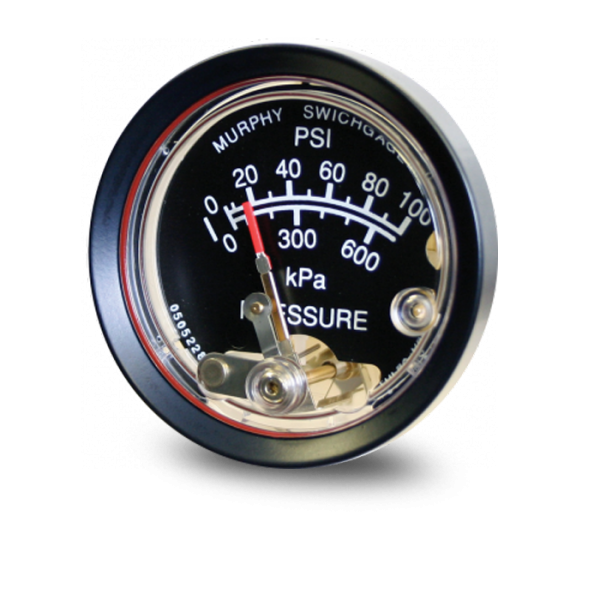

Murphy a20p

Murphy by Enovation A20P/A25P Pressure Gauges

Dial: White on black, dual scale; U.S.A. standard scale is psi/kPa; U.K. standard scale is psi/bar.

Case: Polycarbonate/glass filled, corrosion-resistant; steel mounting clamp included

Bezel: Polished stainless steel, standard; others are available.

Pointer: Tempered nickel silver; Red tip.

Lens: Polycarbonate, high-impact.

Oil: Silicon Oil.

Temperature Range:

  • Ambient: -40°F (-40°C) thru 150°F (66°C).
  • Process: -40°F (-40°C) thru 250°F (121°C).

Process Connection: 1/8-27 NPTM brass.

Sensing Element: Beryllium copper diaphragm.
