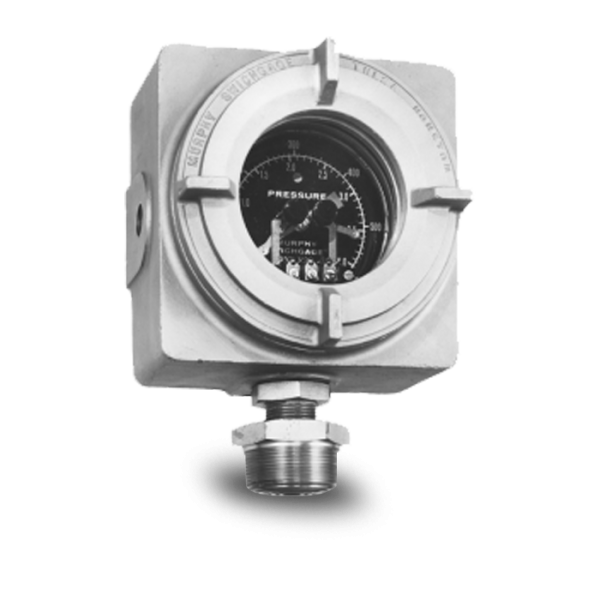

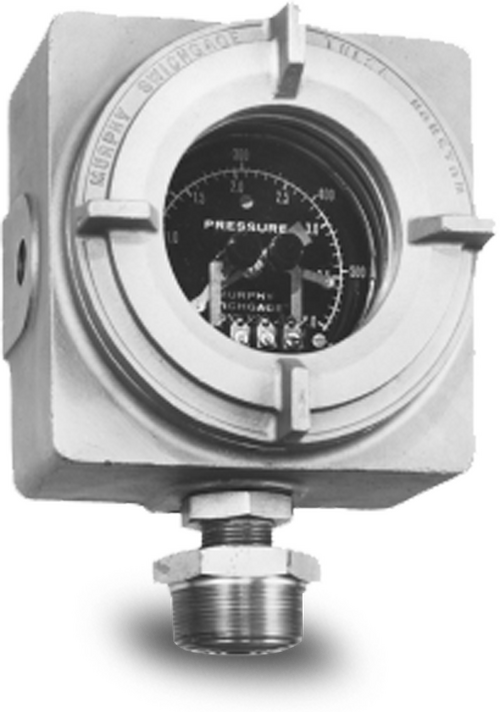

PT167EX Pressure Gauges

Features

• Designed to Monitor Line Pressures of Highly Viscous and Mildly Corrosive Fluids

• Combination Indicating Gage and Critical Pressure Switch

• High and Low Pressure Limit Contacts Are Visible and Adjustable

• Explosion-Proof Enclosure

Case: Explosion-proof, sand cast aluminum. Lens is removable. CSA Listed for Class I, Division 1, Groups C and D. (The PT167EX is CSA listed for ranges 100 to 5000 psi 689 kPa to 34.5 MPa [6.89 to 344.74 bar].)

Contact Rating: 1 A, 125 V AC.

Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa. Other dial configurations available. Consult factory.

Ranges: See How to Order on reverse side.

Gage Accuracy: ±3% full scale.

Process Connection: 2 NPT.
