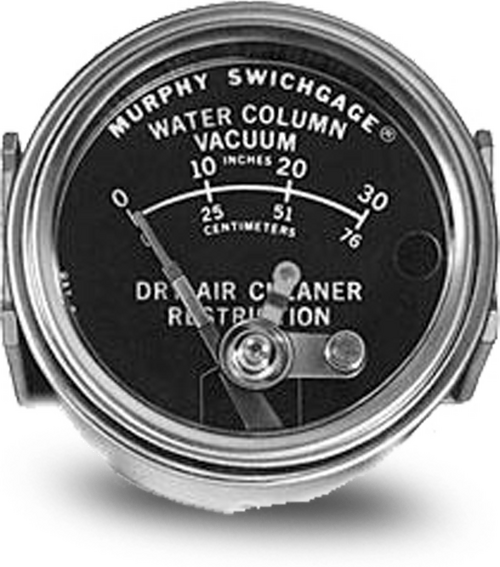

VWC Series Pressure Gauges
■ 2 in. (51 mm) and 2-1/2 in. (64 mm) dia. Water Column Swichgage for Detecting Restricted Dry Air Filters.
■ Indicating Gage and Limit Switch in One.
■ Use the Switch to Activate Alarms and/or to Shut Down Equipment
■ Dependable and Accurate
■ Dual Scale Reading
■ Dash Mounting for Easy Viewing
Contact Rating: 2 A @ 30 V AC/DC.
Contact Adjustment: Allen head.
Wire: 18 AWG x 12 in. (1.0 mm2 x 305 mm), (#4 screw on A25VWC)
Dial: White on black.
Clamp: Metal.
Mounting hole:
- 20VWC: 2-1/16 in. (52 mm).
- 25VWC/A25VWC: 2-11/16 in. (68 mm).
Maximum panel thickness: 1/4 in. (6 mm)
Port: Brass 1/8-27 NPT.
Bezel: Stainless steel.
Case: 20VWC and 25VWC: plated steel. A25VWC: glass filled polycarbonate.
Lens: Polycarbonate.
