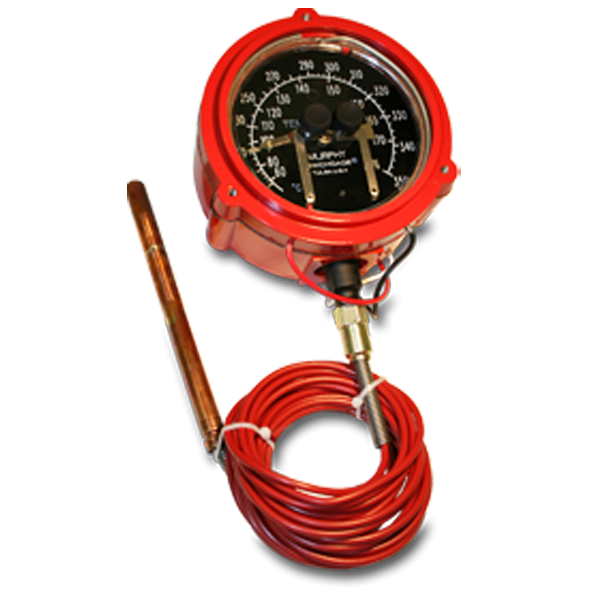

SPL and 45TE Temperature Gauges
Features
• Combination Indicating Gage and Critical Temperature Limit Switches
• High and Low Temperature Limit Contacts Are Visible and Adjustable
• SPDT Snap-Acting Models
• Panel and Wall Mount Versions
• Latching Control Relay Versions Available
-
Specifications
Dial: White on black, dual scale, °F and °C standard, 4-1/2 in. (114 mm) diameter.
Case: Die cast aluminum, surface or panel mount.
Capillary: PVC armored copper tube, 5 ft. long (1.5 m.) standard–see options.
Sensing Bulb: Copper bulb: 1/2 in. (13 mm) OD; Length: 7 in. (178 mm). Minimum bulb insertion– see corresponding chart, on page 2. Pressure Rating: 600 psi (4.1 MPa) [41 bar]. Connection: 1/2 NPT compression fitting.
-
