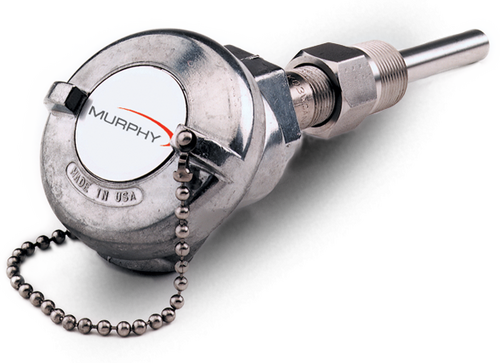

Murphy rtd

Features

• 304 Stainless Steel Thermowell Protection

• Compatible with Digital Swichgage®

• Types “J” or “K” Ungrounded Thermocouples

• 100 Ohm, 3-Wire RTD Assemblies

• 4-20 mA DC Output RTD Transmitters

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Thermowell: 304 stainless steel; 7000 psi (48.2 MPa) [482 bar] max. @ 70°F.

Connecting Head: Cast Aluminum; 400°F (204°C) maximum operating temperature.

Thermocouple: Ungrounded, Magnesium Oxide (MgO) insulated 96% purity; element sheath of 304 stainless steel.

Type “J” operating temp.: 900°F (482°C) max.

Type “K” operating temp.: 1800°F (982°C) max.

RTD: 100 ohm @ 0°C Platinum element; 3-wire; 400 °F maximum; 0.00385 temperature coefficient; 316L stainless steel element sheath.

RTD Transmitter: 100 ohms Platinum RTD; 400 °F maximum; Ranges: 0 to 400°F and -60 to 140°F. Linearized 4-20 mA DC output. Loop powered typically 24 VDC, when using the Loop Resistance Graph, 13-40 VDC. For use with 100 ohms Platinum RTD elements, 0.00385 temperature coefficient.
