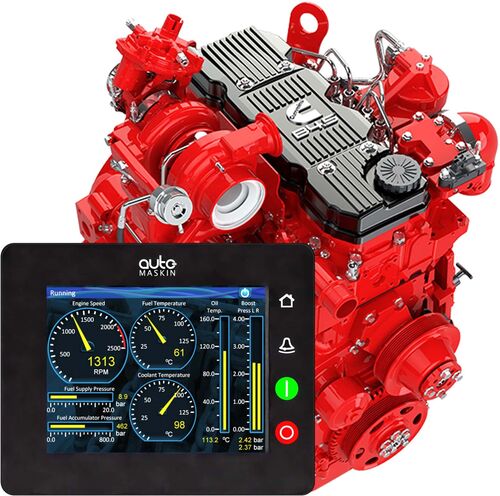

The ProConnect B4.5 is a “Plug and Play” pre-wired control system for Cummins B4.5 engines.
Connect your Cummins B4.5
- A “Plug and Play” pre-wired control system for Cummins B4.5 engines
- Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E Engine Controller and a USB stick with pre-defined configuration files
- Pre-defined configuration files means no programming
- The DCU 210E features and functions complement the engine capability
- Marine Broadcast compatible for cloud based remote monitoring
- No special software required; if additional configuration is needed, it can be done using any web browser
- Full system warranty from Auto-Maskin means “Peace of Mind”
- Supported globally by the Auto-Maskin network
- Authorized Distributor
- Genuine Parts
- Service and Support
Harness length: 10 ft / 3 m, 25 ft / 7.6 m, 50 ft / 15.2 m, 75 ft / 22.8 m
Attributes for: DCU 210E
Size: (Attributes for DCU 2xx panels), w 167 x h 135 x d 68 mm
Cut out: w 156 x h 124 mm, Access depth 90 mm
Screen: 262144 colors, Resolution 640 x 480 pixels
IP: IP56
