Rp 206e auto maskin

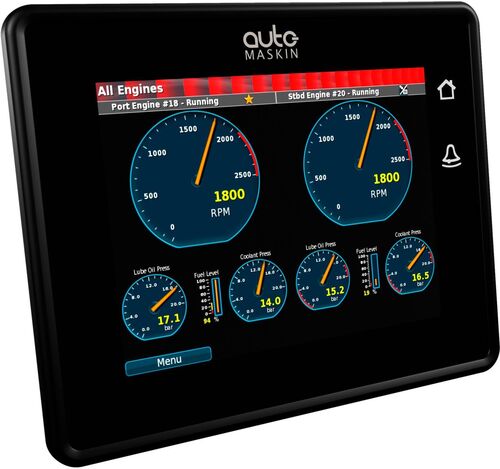

The RP 206E Remote Panel, a twin engine remote panel for Marine Pro 200 and 400 series controllers, is a high-resolution marine display for engine alarming and visualization. Designed for manoeuver and wing stations. Out of the box the RP 206E includes more than 12 inbuilt languages, fuel consumption measurements, unit selection, event log and many more features that vessel operators appreciate at sea.

SKU: 1006478

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

The RP 206E Remote Panel, a twin-engine remote panel for Marine Pro 200 and 400 series controllers, is a high-resolution marine display for engine alarming and visualization. Designed for manoeuver and wing stations. Out of the box the RP 206E includes more than 12 inbuilt languages, fuel consumption measurements, unit selection, event log and many more features that vessel operators appreciate at sea.

The ultra-crisp touch screen, color graphics, and fully protected front and rear provide the best readability and reliability under all weather conditions. Capable of displaying up to two engines with a complex set of sensor data.

The RP 206E auto-configures to any 200 and 400 series controllers, which truly reduces installation and maintenance costs. Like the RP 220E, the RP 206E is capable of monitoring two DCUs or Engines.

Compared to the RP 210E remote panel, the RP 206E is a monitor only remote panel for when one wants to maintain operational security.

RP 206E highlights:

  • Sun readable, color touch screen, all-glass design
  • Configurable graphics
  • Alarm and event log for all engines
  • Camera support
  • Onboard configurable I/O
  • Inbuilt troubleshooting and support aid
  • Marine Pro auto-configuration – lowest commissioning cost
  • Durable, rugged and sealed for use in arduous conditions

The panel connects to DCUs using only a standard Ethernet cable, and will automatically “find” any DCUs that are connected to the network. No configuring, no setup, no hassle. Additionally, when connected, the RP 206E will update itself with any DCU configuration changes automatically, providing seamless consistency across all panels.

Using the brightness-adjustable touch screen, the operator gets full overview and control of the equipment, exactly as operating the DCU engine controller locally at the engine. The operator can select the language at the RP 206E independently of the DCU.

There is no practical limit to how many RP 206E remote panels that can be connected to one engine controller.

Note! A Basic Harness Kit (P/N: 1006946) including one prewired Deutsch DT-connector with a 2 m power cable and three sealing blind plugs for easy installation is available and if needed, this must be ordered separately.
