Rp 410e am auto maskin

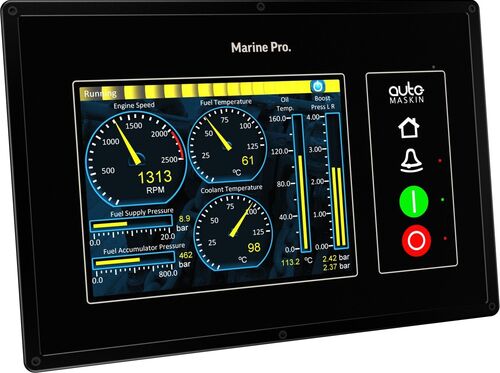

The RP 410 is a 8.4″ colour touchscreen panel with a high resolution screen. The RP 410E can monitor and control up to eight DCU engine controllers in the Auto-Maskin 200 or 400 Series. The panel is also truly self-configuring. Any change in any engine controller’s configuration is immediately reflected into the RP 410E without any operator actions.

SKU: 1006446

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

The RP 410E is an 8.4″ color touchscreen panel with a high-resolution screen. The RP 410E can monitor and control up to eight DCU engine controllers in the Auto-Maskin 200 or 400 Series. The panel is also truly self-configuring. Any change in any engine controller’s configuration is immediately reflected into the RP 410E without any operator actions.

The RP 410E is a direct replacement for the existing RP 410. It has an improved 8.4″ color touchscreen panel and a significantly faster processor for instant response and clarity. It is suitable for console mount, an improvement being that it is now IP56 rated when mounted, and of course, retains several IACS Society Approvals.

The RP 410E can monitor and control up to eight DCU engine controllers in the Auto-Maskin 200 or 400 Series. The panel is also truly self-configuring. Any changes in any engine controller’s configuration are immediately reflected into the RP 410E without any operator actions.

Why more customers select the RP 410E

With simple, easy to use “touchscreen” functionality, the information and controls are displayed graphically and with icons for navigation. Highly effective for use in direct sunlight, but also equipped with auto-dimming and a night mode, the RP 410E can be installed anywhere in the vessel. The unit connects to the DCU modules via a simple Ethernet connection, or via Ethernet switches if multiple panels are required.

The RP 410E is approved by many Classification Societies [ see our website for current qualifications], including supporting all requirements for Master Panel, Active Station and remote alarm suppression.

The RP 410E requires no on-site configuration. Once connected to the DCU, it automatically configures itself. With a wide selection of languages installed as standard, with easy “on the fly” changes, the operation is safer and clearer to the operators. The Owner can select from several different templates to provide the preferred panel layout, and uploading and downloading of files (including wallpapers) and information can take place using the USB connection.

By using the password-protected areas, certain parameters of the panel can be adjusted locally if required. Additionally, by DCU’s reading the engine J1939 CANbus available on most electronic engines today, the RP 410E will show fault codes, not only as a numeral but as a plain text description of the event/alarm, providing a clear indication to allow operators to take the appropriate actions. Multiple engines can be displayed on a single panel (1 – 8 limit), and up to four engines on a single page.

The RP 410E can also support up to four IP-cameras, either to monitor engine spaces or provide security coverage, all without a dedicated CCTV system, saving substantially the cost of dedicated equipment and its upkeep.
