Air Cooled

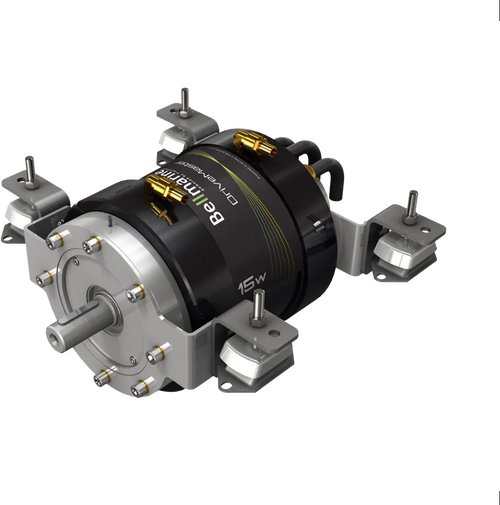

- Motor with mounting brackets and silent blocks
- Motor with integrated thrust bearing
- Vector control inverter IP65
- Main switch and main fuse
- DC-DC converter 12 Vdc
- 1,5m cable for display, lever, key
- Quick install / easy connect / plug and play
Optional:
- NMEA2000 compatible (upon request)
- Regeneration kit
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV101489A | DriveMaster 2A | 180-4 | 1.5 | 2 | 48 | 1500 |
| BV100854A | DriveMaster 5A | 180-8 | 4 | 5 | 48 | 1500 |
| BV101529A | DriveMaster 7A | 180-12 | 5 | 7 | 48 | 1500 |
| BV101808A | DriveMaster 10A | 220-20 | 8 | 10 | 48 | 1500 |
| BV102008A | DriveMaster 8A | 180-12 | 6 | 8 | 96 | 1500 |
| BV102015A | DriveMaster 15A | 220-20 | 10 | 15 | 96 | 1500 |
| BV101288A | DriveMaster 25A | 220-35 | 20 | 25 | 144 | 1500 |
| BV102035A | DriveMaster 35A | 300-50 | 30 | 35 | 144 | 1500 |
| BV102050A | DriveMaster 50A | 300-75 | 40 | 50 | 144 | 1500 |
Liquid Cooled
Motor with mounting brackets and silent blocks
- Motor with integrated thrust bearing
- Vector control inverter IP65
- Main switch and main fuse
- DC-DC converter 12 Vdc
- 1,5m cable for display, lever, key
- Quick install / easy connect / plug and play
- Inlet and outlet liquid connections
Optional:
- NMEA2000 compatible (upon request)
- DP280 ratio i= 1.59 - 2.01 - 2.41 - 2.87 - 3.35 - 3.97 - 5.01
- Regeneration kit
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV101608W | DriveMaster 3W | 180-4 | 2.5 | 3 | 48 | 1500 |
| BV100854W | DriveMaster 7W | 180-8 | 5 | 7 | 48 | 1500 |
| BV100808W | DriveMaster 10W | 180-12 | 8 | 10 | 48 | 1500 |
| BV100810W | DriveMaster 15W | 220-20 | 10 | 15 | 48 | 1500 |
| BV101610W | DriveMaster 20W EVO | 220-20 (*) | 15 | 20 | 48 | 1500 |
| BV100812W | DriveMaster 20W | 220-20 | 15 | 20 | 96 | 1500 |
| BV101288W | DriveMaster 30W | 220-35 | 25 | 30 | 144 | 1500 |
| BV101642W | DriveMaster 45W | 300-50 | 35 | 45 | 144 | 1500 |
| BV101580W | DriveMaster 55W | 300-75 | 45 | 55 | 144 | 1500 |
| (*) Special |
