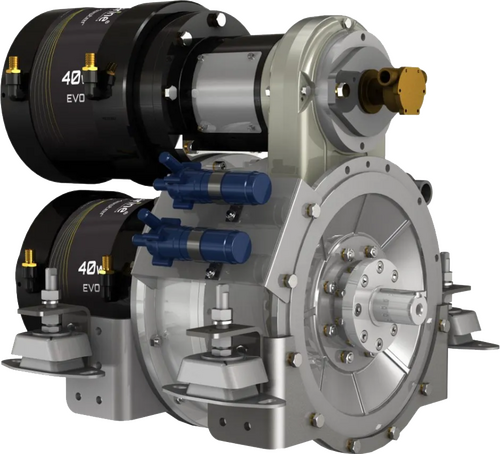

Modularmaster

Liquid Cooled

with SPD11 Split Power Drive

True redundancy in case of one motor failure

  • Aluminum made split power drive
  • Mounting brackets and silent blocks
  • Live PTO available
  • Vector control inverter IP65
  • Main switch and main fuse
  • DC-DC converter 12 Vdc
  • 1,5m cable for display, lever, key
  • Quick install / easy connect / plug and play
  • Inlet and outlet liquid connections
  • Closed loop liquid cooling

Optional:

  • NMEA2000 compatible (upon request)
  • DP280 i= 1.59 - 2.01 - 2.41 - 2.87 - 3.35 - 3.97 - 5.01
Product CodeDescriptionMotor SizeNominal kWIntermittent kWBattery VdcMotor rpm
BV201450WModularMaster 40W EVO2x220-20 (*)3040481500
BV101485WModularMaster 40W2x220-203040961500
BV101480WModularMaster 60W2X220-3550601441500
(*) Special
