Air Cooled
Reduction ratio i= 2
Propeller rpm = motor rpm/i
Motor with mounting brackets and silent blocks
- Motor with integrated thrust bearing
- Vector control inverter IP65
- Main switch and main fuse
- DC-DC converter 12 Vdc
- 1,5m cable for display, lever, key
- Quick install / easy connect / plug and play
- Throttle lever with mechanical actuator (TFC)
- Elastic coupling between motor and transmission
- Trim kit
Optional:
- NMEA2000 compatible (upon request)
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV330020A | SternMaster 20A | 220-20 | 15 | 20 | 96 | 3000 |
| BV330025A | SternMaster 25A | 220-20 | 20 | 25 | 144 | 3000 |
Liquid Cooled
Reduction ratio i= 2
Propeller rpm = motor rpm/i
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV330025W | SternMaster 25W | 220-20 | 20 | 25 | 96 | 3000 |
| BV330035W | SternMaster 35W | 220-20 | 30 | 35 | 144 | 3000 |
| BV330045W | SternMaster 45W | 220-35 | 35 | 45 | 288 | 3000 |
| BV330065W | SternMaster 65W | 300-50 | 50 | 65 | 288 | 3000 |

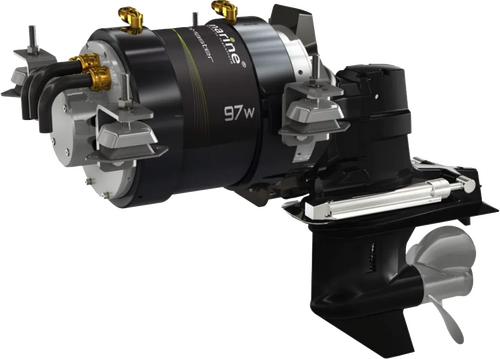

| BV330097W | SternMaster 97W | 300-75 | 75 | 97 | 288 | 3000 |
Authorized Distributor
Palmer Johnson is an authorized distributor and service provider for Bellmarine products.
Service and Support
Seven master rebuild centers, ten full-service centers, and an extensive dealer network to serve you.
