Air Cooled
reduction ratio i= 1.59 - 2.01 - 2.41 - 2.87 - 3.35 - 3.97 - 5.01
Propeller rpm = motor rpm/i
- Motor with mounting brackets and silent blocks
- Drop Box with integrated thrust bearing - 225 mm offset
- Vector control inverter IP65
- Main switch and main fuse
- DC-DC converter 12 Vdc
- 1,5m cable for display, lever, key
- Quick install / easy connect / plug and play
- Dropbox aluminum made - no cooling needed - low noise and low vibration
- Oil temperature sensor
- Elastic coupling between motor and Dropbox
- DIN120 output (SAE 1410 upon request) - “U” drive possible
Optional
- NMEA2000 compatible (upon request)
- Regeneration kit
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV101716A ●●● | TorqueMaster 20A | 220-20 | 15 | 20 | 96 | 3000 |
| BV102025A ●●● | TorqueMaster 25A | 220-20 | 20 | 25 | 144 | 3000 |
| (●●●) According to reduction ratio |

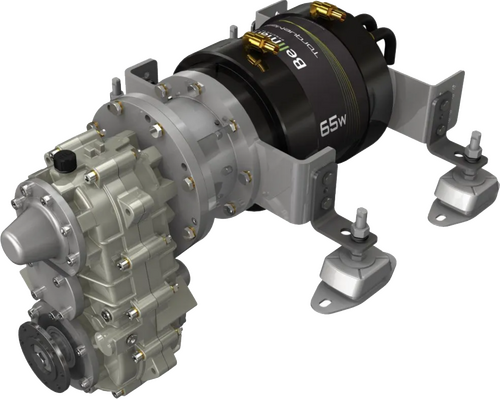

Liquid Cooled
reduction ratio i= 1.59 - 2.01 - 2.41 - 2.87 - 3.35 - 3.97 - 5.01
Propeller rpm = motor rpm/i
- As above
- Inlet and outlet liquid connections
- For 288/384V systems - Throttle lever TFC
| Product Code | Description | Motor Size | Nominal kW | Intermittent kW | Battery Vdc | Motor rpm |
| BV101740W ●●● | TorqueMaster 20W EVO (*) | 220-20 (*) | 15 | 20 | 48 | 1500 |
| BV101716W ●●● | TorqueMaster 25W | 220-20 | 20 | 25 | 96 | 3000 |
| BV101717W ●●● | TorqueMaster 35W | 220-20 | 30 | 35 | 144 | 3000 |
| BV102045W ●●● | TorqueMaster 45W | 220-35 | 35 | 45 | 288 | 3000 |
| BV102065W ●●● | TorqueMaster 65W | 300-50 | 50 | 65 | 288 | 3000 |
| BV102100W ●●● | TorqueMaster 100W | 300-75 | 75 | 100 | 288 | 3000 |
| BV102130W ●●● | TorqueMaster 130W | 300-75 | 100 | 130 | 384 | 3000 |
| (●●●) According to reduction ratio (*) Special |
