Carraro Agricultural Tractor Transmissions

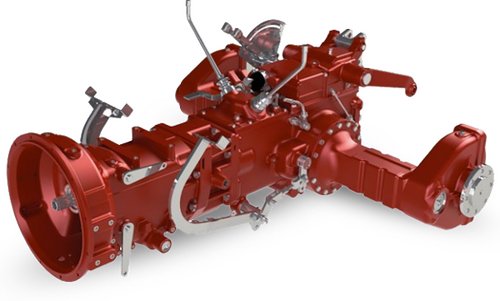

304 Agricultural transaxle

  • 8F/2R speeds, constant mesh gears “collar shift”
  • 2.6 - 32 Kph speed
  • 4 collar shift gearbox
  • 2 collar shift ranges
  • non ind. 540 rpm or 540/540E rear PTO
  • foot pedal operated diff. lock
  • wet oil service brakes mechanical actuation
  • central top cover gearshift control levers
  • out board bull gear final drive reduction
  • draft & position control top located hydr. lift
    10,000N lift capacity at lower link balls

506 Agricultural transaxle

  • Specifically developed for Vineyard/Orchard tractors and light duty STD’s for 55-85 HP power ratings.
  • The 2-shaft design considerably reduces gearbox size and provides ample room in the driver area, significantly
    enhancing ergonomics and comfort.
  • The synchronized reverser is a basic feature ensuring easy and rapid reversal when manoeuvring in narrow spaces
    typical of vineyards and orchards.
  • The basic version complete with synchronized constant mesh gears 8 forward / 8 reverse gears ensures driving comfort
    and reliability, as well as significant tractor cost savings.
  • The wet service brakes, situated near the differential in front of the final reduction, are designed to be virtually
    maintenance-free and to last as long as the tractor. The basic version control is manual/mechanical, while the hydraulic
    control is available as an optional on the version with suspended pedals for tractors with cabs, etc.
  • The ground drive rear power take-off (GD-PTO), basic on the 12 forward / 12 reverse and 24 forward / 24 reverse gear
    versions, allows the attachment of a motor trailer, improving versatility and traction on slopes or muddy terrain.
  • The independent rear PTO has been designed to transmit all the engine’s power and is therefore ideal for Vineyard/Orchard
    tractors and light duty STD’s which are mainly used with attachments such as sprayers, balers, rotary cultivators, etc.
  • The SAE 3 clutch housing ensures connection to different makes of diesel engine and satisfies the flexibility and brand
    image requirements of the various manufacturers.

345 Agricultural transaxle

  • 8F/2R speeds, constant mesh gears “collar shift”
  • 2.6 - 30 Kph speed
  • 4 collar shift gearbox
  • 2 collar shift ranges
  • non ind. 540 rpm or 540/540E rear PTO
  • foot pedal operated diff. lock
  • wet oil service brakes mechanical actuation
  • central top cover gearshift control levers
  • in board epicyclic final reduction
  • draft & position control top located hydr. lift
    10,000N lift capacity at lower link balls
