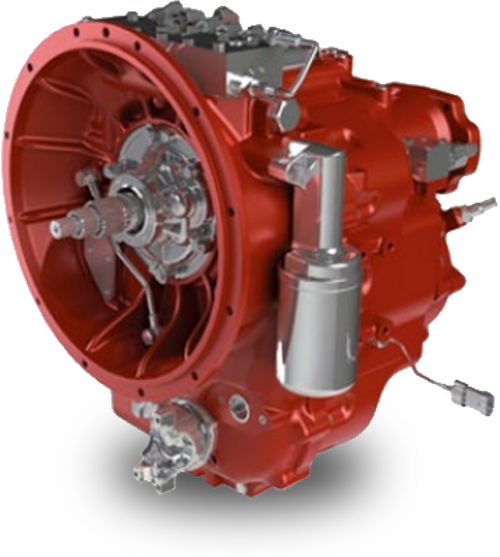

Carraro backhoe transmission

BACKHOE LOADERS

The most complete range of transmission systems on the market, for machines of every size and architecture: from the lightest with 2 driving wheels and 2-wheel steering, to the larger high-performance ones with 4 driving wheels and 4-wheel steering.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

TCB80 2WDTCB80 4WD
Power Rating82 kW @ 2,200 rpm82 kW @ 2,200 rpm
Max input Torque750 Nm750 Nm
Max input speed2,400 rpm2,400 rpm
Internal Pump TypeGearGear
Engine Flywheel InterfaceSAE 3SAE 3
Output Flage TypeYoke 1410Yoke 1410
2WD output drop from Engine180 mm180 mm
4WD output drop from Engine323 mm
Vehicle Pump InterfaceSAE CSAE C
Torque Converter SizeW300W300
Speed Gear4 Fwd + 4 Rev4 Fwd + 4 Rev
Fwd/Rev Ratios Option1:1 / 1:0.8291:1 / 1:0.829
