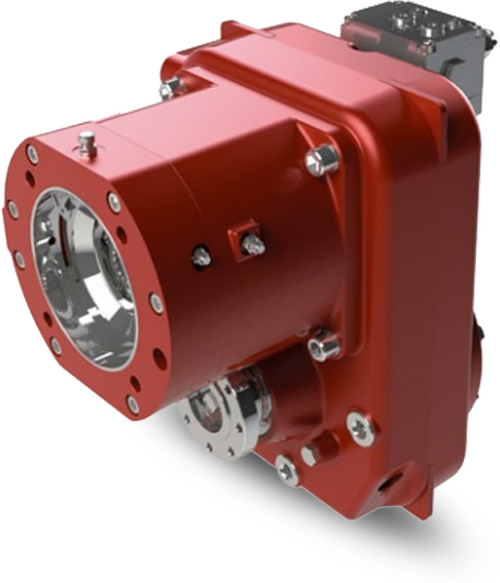

Carraro telehandler transmission

Model: CV2

Description 2 speed power shift

Output drop from engine mm 182

Input interfaces cc

Hydraulic motor

80/107

Reduction ratios

1st: 9.137:1, 4.310:1

2nd: 2.400:1, 1.132:1

Max Input rpm 5,500

Max Input torque Nm 770

Park brake type Wet Inboard SAHR

Model: FLS 3.2

Description 2 speed power shift

Output drop from engine mm 185

Input interfaces cc

Hydraulic motor

107

Reduction ratios

1st: 4,217

2nd: 1.022

Max Input rpm 5,500

Max Input torque Nm 770

Model: LS 4.2

Description 2 speed power shift

Output drop from engine mm 176

Input interfaces cc

Hydraulic motor

80/140

Reduction ratios

1st: 5.143:1, 4.934:1, 4.423:1

2nd: 1.371:1, 1.316:1, 1.179:1

Max Input rpm 5,500

Max Input torque Nm 1,100
