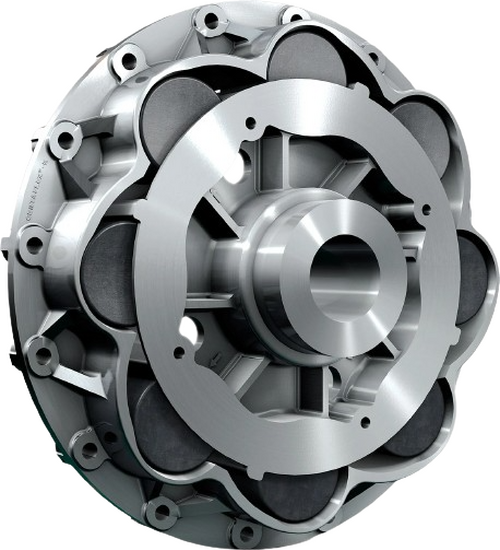

CENTA CENTAFLEX-R Coupling

Palmer Johnson is an authorized distributor for the CENTA CENTAFLEX-R Couplings with expert support working on new applications down to parts support & troubleshooting your existing coupling.

The CENTAFLEX-R series are torsionally soft and highly flexible couplings with progressive characteristics, offering low stiffness at low torque and progressively increased moderate stiffness at higher torque. This extremely robust, fail-safe design features rubber-in-compression rollers for high reliability and bonding-free performance. With smooth operation and reliable transmission under many different applications, the CENTAFLEX-R is a dependable coupling design. Available in oil-resistant and high-temperature resistant variations, the CENTAFLEX-R series offers adaptable and flexible performance.

Suited for a variety of shaft connections, standard and non-standard flywheels, the CENTAFLEX-R series is ideal for close-coupled marine diesel drives for “gear chatter-free” operation. CENTAFLEX -R series is also well suited for industrial and off-highway applications for engine driven high inertia gearboxes and pump drives where a low-load/low-stiffness, high-load/high-stiffness progressive torsional coupling is desirable.

Whether you are wanting to explore a CENTAFLEX-R Coupling for your next application or are needing parts support for your existing coupling; we've got you covered. Contact the CENTA coupling & drive shaft experts today!


Centaflex-R Series Coupling Features:

  • Fail safe
  • Simple, reliable, no bonding, only rubber in compression
  • Special developed, temperature resistant elastomer CENTALAN with high damping, suitable for high ambient temperature of more than 100°C (212°F)
  • For commercial heavy duty or difficult applications we recommend the special „HD“ rubber rollers, which are also oil resistant.
  •  Well proven in service and approved by classification societies
  • High allowable energy loss by intensive inner and outer ventilation
  • Suitable for blind fitting in bell housings
  • Economic/easy maintainable design
  • Protected by international patents
  • Area of application: flange mounted units or well aligned independently mounted units on rigid mounts
  • The CF-R is part of the CENTA-Antriebe family of marine drive couplings covering a range between the more than 100000 times proven CENTAFLEX-DS (Dual Stage) series and the well established, CENTAX series up to 500 kNm.

Contact Us

Assembly & Model Numbers:

CF-R-94-06, CF-R-114-011, CF-R-134-011, CF-R-136-011, CF-R-216-011, CF-R-216-014, CF-R-268-014, CF-R-318-014, CF-R-318-018, CF-R-420-018, CF-R-420-021, CF-R-520-018, CF-R-520-021
