Cotta transfercase

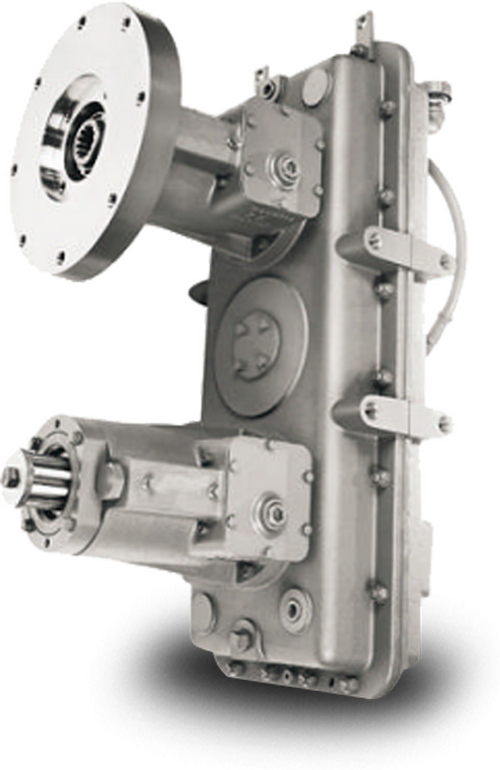

The TR2205 Transfer Case is designed for maximum application flexibility. The T-case is completely symmetrical with four identical Input/output stations. Each station has a 2.75 X 10 splined shaft which can be used as either an input or output.

Each station can also be fitted with an optional disconnect. These disconnects will accept companion flanges or yokes and can be used as axle disconnects or as PTO disconnects. An alternate line of disconnects is offered with integral SAE pump pads.

Depending upon disconnect selection, the TR2205 can be configured as a drop box, transfer case, pump drive or PTO.

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

  • Capacity:17,000 lb-ft. max input torque
  • Maximum input speed: 2,800 RPM for short duration
  • Center distance: 17 inches
  • Rotation: output same as input
  • Lubrication: Pump/splash Ratio: 1:1
  • Gears: precision ground helical
  • Bearings: tapered roller
  • Mounting: 4 holes each side
  • Weight: 600 lbs.
  • Disconnects: 2-3/4X10 spline B,C,D,E Pump pads.
