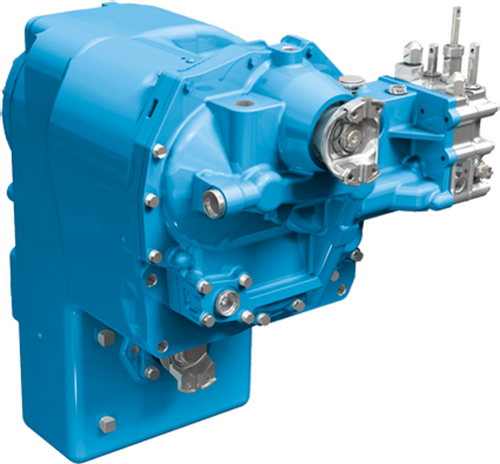

Spicer32000 Powershift Transmission

The Spicer 32000 transmission provides optimal performance for heavy-hauling and mining applications. Available in numerous configurations, and options offer highly adaptable solutions to meet almost any vehicle requirement.

PRODUCT DATA:

  • Input Power (kW): 93-167
  • Maximum Turbine Stall Torque (Nm): 2,319
  • Speed Number: 3x3, 4x4, 6x6, 8x8
  • Vertical Drop (mm): S.D. = 245.3 L.D.=470.4

ADDITIONAL FEATURES:

  • Transmission Ratios: See spec sheet
  • Maximum Input Speed (rpm): 3,100
  • Configurations: Short, long
  • Converter Bell Housing: SAE no. 3 (Dry)
  • Converter Stall Torque Ratio Range: 1.82-3.10
  • Auxiliary Pump Drive Torque Capacity (Nm): 353
  • Key Options: Modulation, inching, de-clutch

Typical specs/models: 3016FHR32662-500, 3016FHR32662-502, 3016FHR32662-503, 3016FHR32330-501
