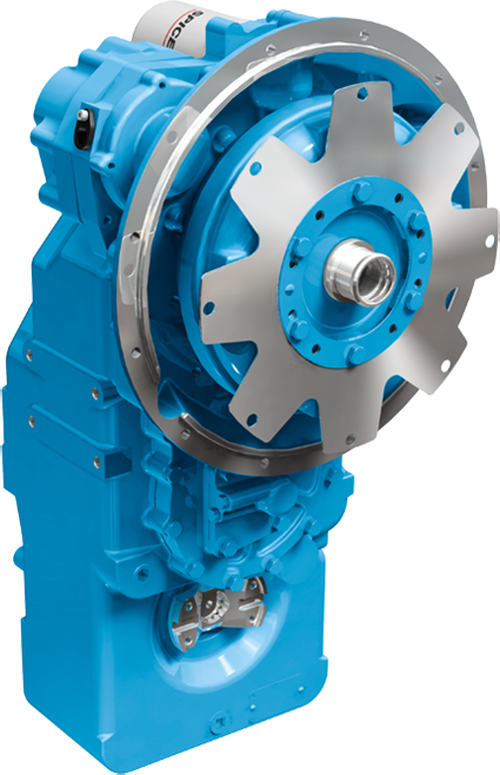

Spicer T12000 Powershift Transmission

Spicer T12000 Series Powershift Transmission

The Spicer T12000 transmission is designed for Off-Highway equipment that requires the power and performance of a rugged hydrodynamic transmission. It offers many installation options to accommodate vehicle requirements.


  • Input Power (kW): 80
  • Maximum Turbine Stall Torque (Nm): 650
  • Speed Number: S.D., I.D. & L.D.: 3x3, 4x3, 6x3
  • Vertical Drop (mm): S.D. = 137.7 I.D. = 320.8 L.D. = 459.0


  • Transmission Ratios: See spec sheet
  • Maximum Input Speed (rpm): 3,300
  • Configurations: Short, intermediate, long drop
  • Converter Bell Housing: SAE no. 3
  • Converter Stall Torque Ratio Range: 1.84-2.78
  • Auxiliary Pump Drive Torque Capacity (Nm): 244.8
  • Key Options: Freewheel, modulation, inching, de-clutch
