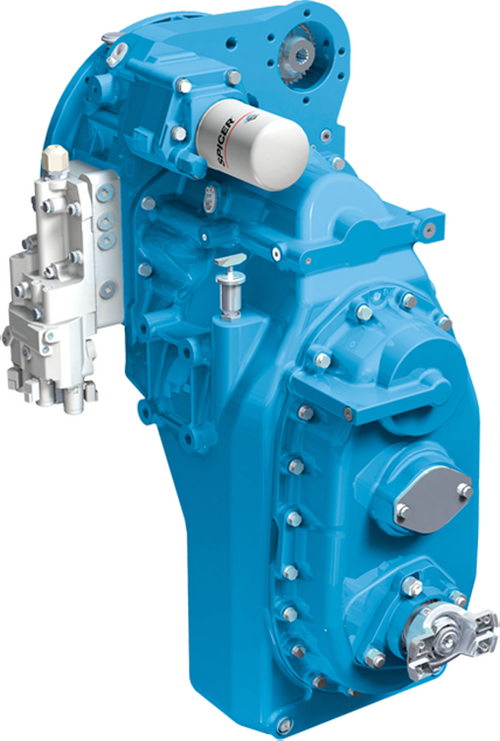

Spicer T20000 Powershift Transmission

Spicer T20000 Series Powershift Transmission

The Spicer® T20000 transmission, designed for heavy-duty applications, features helical gearing, providing increased torque on rugged terrain under heavy loads. This transmission offers many installation options to accommodate a high variety of vehicle requirements

PRODUCT DATA:

  • Input Power (kW): 67-97
  • Maximum Turbine Stall Torque (Nm): 815
  • Speed Number: Inline: 3x3 Intermediate: 3x3 Long Drop: 3x3, 4x3, 6x3, 6x6
  • Vertical Drop (mm): Inline = 0.000 I.D. = 311.15 L.D. = 508.0

ADDITIONAL FEATURES:

  • Transmission Ratios: See spec sheet
  • Maximum Input Speed (rpm): 3,100
  • Configurations: Inline, intermediate & long drop
  • Converter Bell Housing: SAE no. 3 (Dry)
  • Converter Stall Torque Ratio Range: 1.972-2.826
  • Auxiliary Pump Drive Torque Capacity (Nm): 340
  • Key Options: Freewheel, modulation, inching, de-clutch
