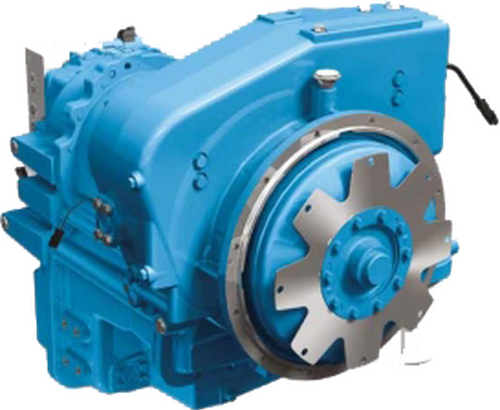

Dana Spicer TE17 Transmission

The Spicer® TE17 transmission is engineered specifically to deliver improved productivity and reliability in the material-handling market. The innovative three-speed full hydrodynamic transmission incorporates the latest in manufacturing and electronic control systems, resulting in the smoothest operation in the market.


  • Input Power (kW): 160-200
  • Maximum Turbine Stall Torque (Nm): 1,763
  • Speed Number: 3x3
  • Vertical Drop (mm): 226.8


  • Transmission Ratios: See spec sheet
  • Maximum Input Speed (rpm): 2,650
  • Configurations: Short drop
  • Converter Bell Housing: SAE no. 3 (dry)
  • Converter Stall Torque Ratio Range: 1.540-2.129
  • Auxiliary Pump Drive Torque Capacity (Nm): Continu. = 1200 Intermitt. = 700
  • Key Options: Freewheel, modulation, inching, de-clutch

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

165 to 215 kW (220 to 266 hp)
