Eaton dc

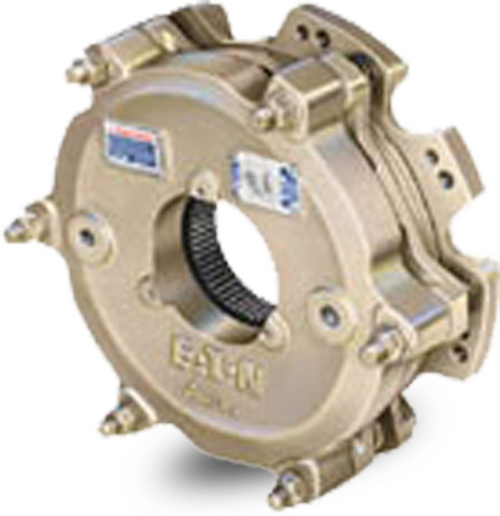

Palmer Johnson is an authorized distributor for the Airflex DC brakes and clutches. The Airflex DC brakes and clutches are pressure actuated and are physically smaller than most other type clutches and brakes with the same torque capacity. The DC series is used in a wide range of applications including power presses, tensions brakes, and metalforming machines. DC brakes and clutches are offered in five disc sizes with the disc diameters ranging from 9 to 38 inches.

Whether you are needing genuine Airflex parts, service manuals or parts lists, or you are wanting one of our factory trained technicians to repair your DC clutch or brake, we’ve got you covered. Contact the Airflex experts today!

Size/Model NumberPart Number
Airflex 109DC146239A
Airflex 209DC146240B
Airflex 115DC146225B
Airflex 215DC146226B
Airflex 120DC146301B
Airflex 220DC146317B
Airflex 320DC146366B
Airflex 420DC146390
Airflex 125DC146316B
Airflex 225DC146355B
Airflex 325DC146354B
Airflex 425DC146389B
Airflex 138DC146307B
Airflex 238DC146336B
Airflex 338DC146360B
Airflex 438DC146388

Contact Us

Please be as specific as possible by including how we can assist along with any relevant information such as spec number, BOM number, or serial number.

Airflex DC Clutch & Brake Product Features

  • Optional split friction discs simplify maintenance in mid-shaft brake arrangements by allowing friction discs to be removed without disturbing other components of the drive system
  • Low-inertia friction disc assembly improves reliability by reducing the overall inertia to be stopped
  • Static torque capacities up to 2,061,000 lb-in (233,000 Nm) equalizes torque in either direction of rotation
